Vigilance Full HD PoE Dome Camera

DCS-4603

  • Product Status: End of Sale
DCS-4021

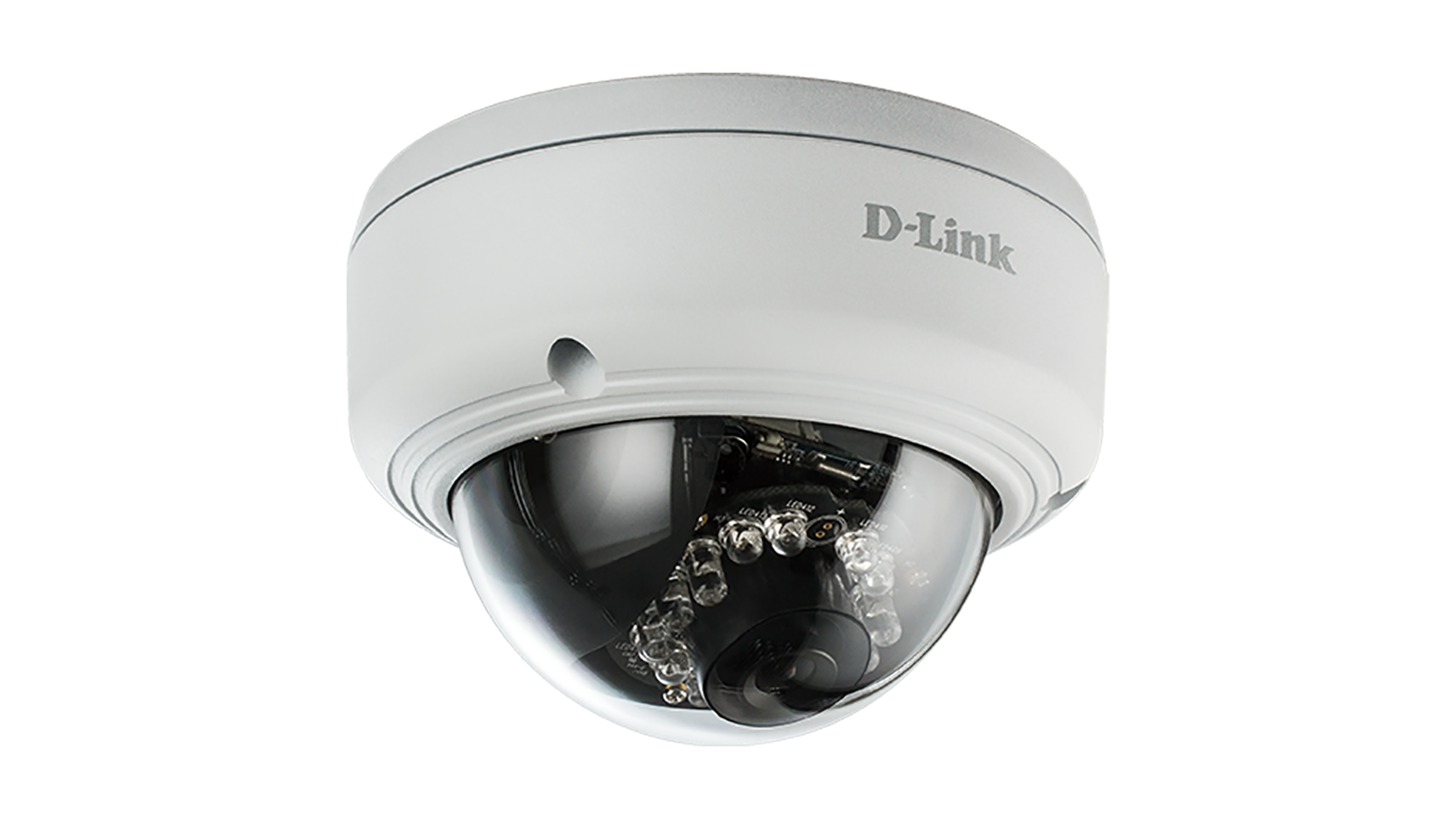

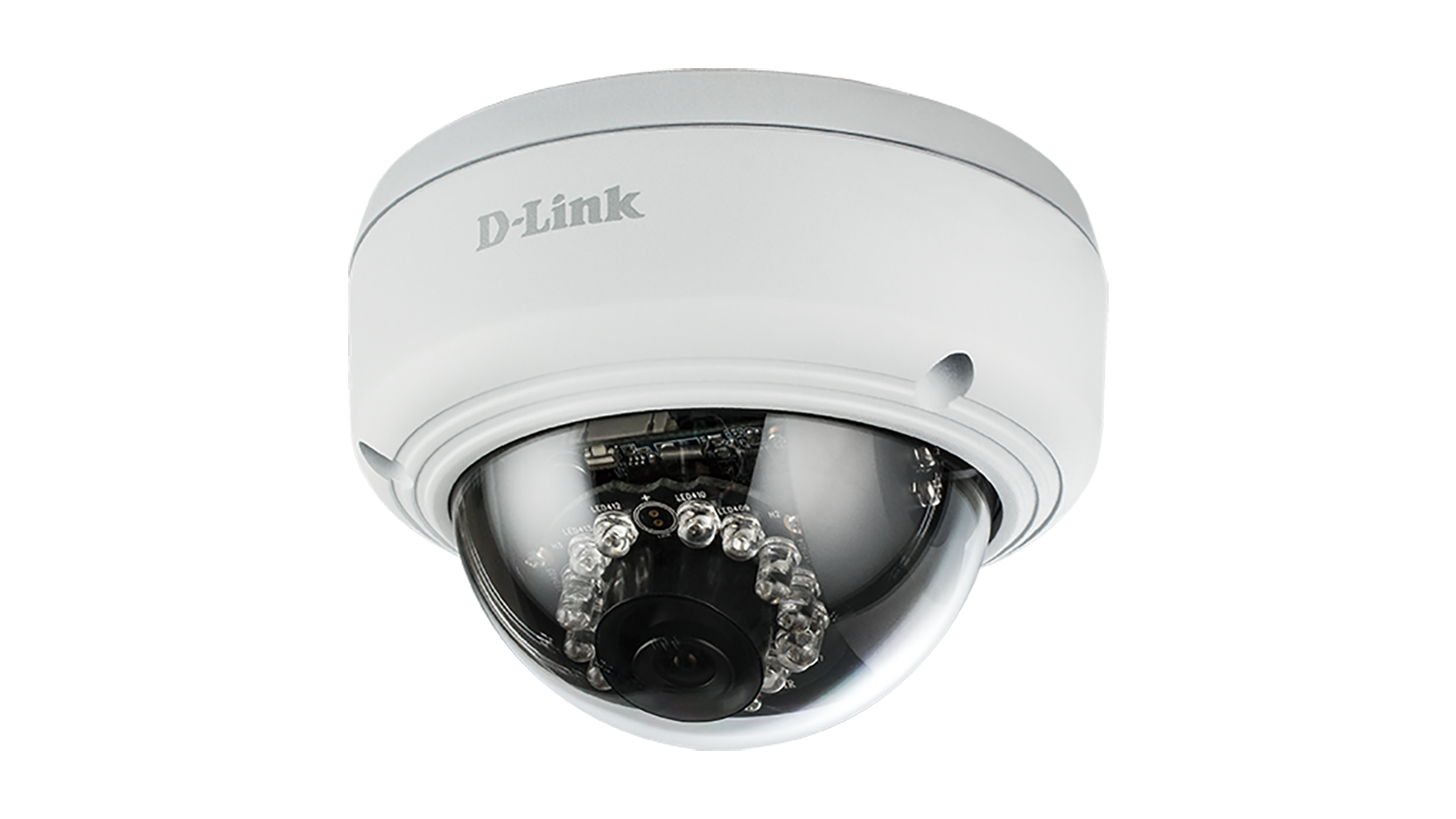

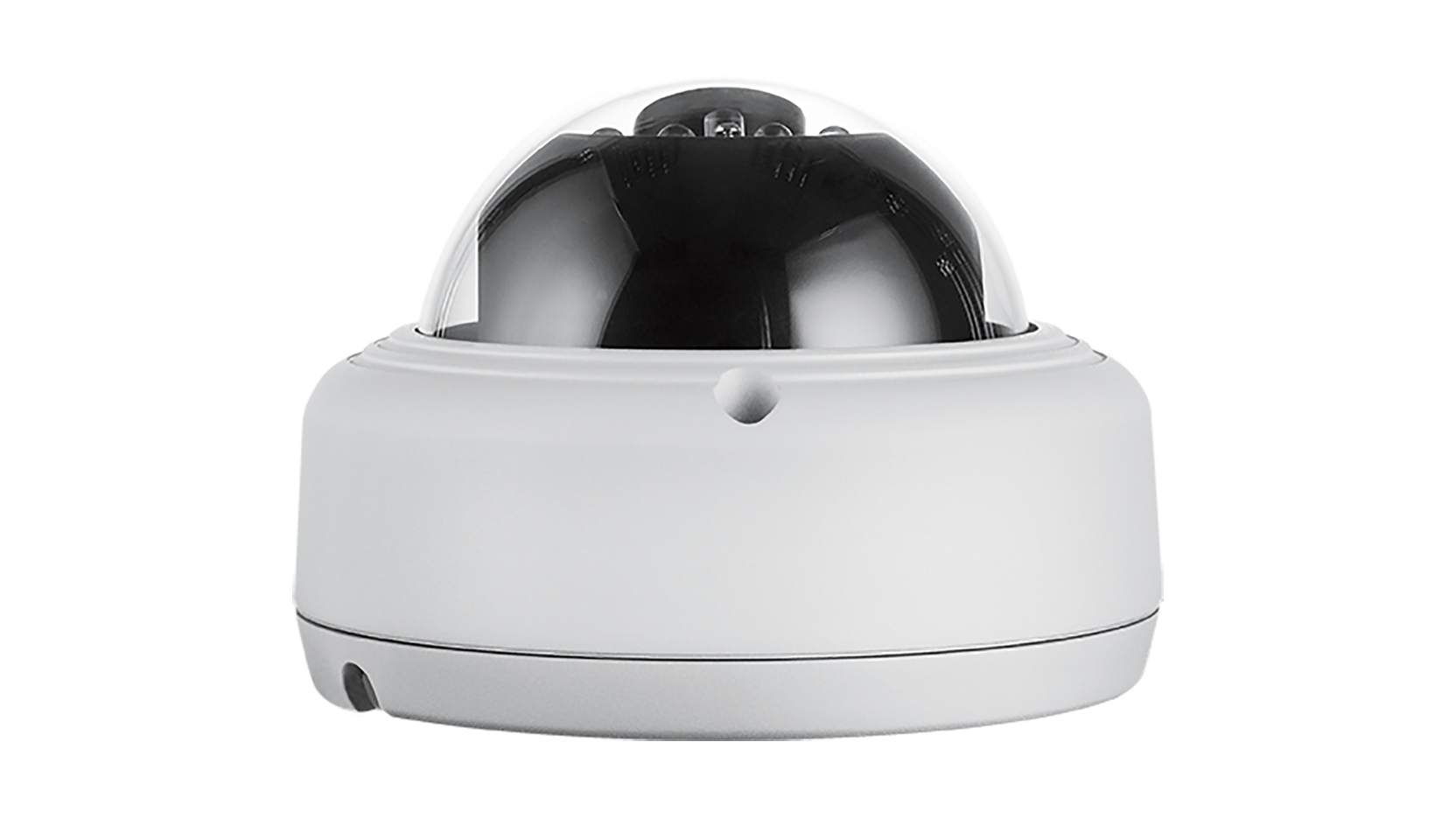

Full HD PoE Dome Camera

The Vigilance Full HD PoE Dome Camera is a professional, full featured HD Camera, that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Featuring a high resolution 3-Megapixel sensor, the camera supports resolution up to 2048 x 1536. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 10 metres night vision and clear detailed images in contrasting and low light environments.

Manual 3-Axis Adjustment

The Full HD PoE Dome Network Camera's unique design with 3-axis adjustment allows for precise positioning of the lens, supporting non-motorized 340° pan, 340° rotation and 60° tilt.

DCS-4603 3 axis



Vigilance range

The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused

Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.



Compatible Accessories for the Vigilance Cameras

  DCS-37-1

Fixed Dome Wall Mount Bracket
DCS-37-2

Fixed Dome Junction Box
DCS-4201
DCS-4602EV
DCS-4603
DCS-4701E

DCS-4802E
Indoor/outdoor
Indoor
Type
Dome
Connectivity
Wired PoE
Resolution
3 megapixel
Image sensor
1/3" 3 megapixel progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)
2048 x 1536 (other)
Advanced Light features
Wide Dynamic Range
Lens
2.8 mm
F1.8
Fixed
Angle of View (H/V/D)
84° / 48° / 97°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
10 m
Wide Dynamic Range(WDR)
Supported
Privacy Masks
3 zones
Power Consumption
4.2 W
App Support
JustConnect+
Features
D-ViewCam D-Link NVR compatible
ONVIF
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 05/05/2021
Version Date Type File Size
Vigilance Range Datasheet - PDF 1.60mb Download
Vigilance Range Datasheet - PDF 1.60mb Download
Version Description Date Type File Size
Manual 1.02 RevA1 Product Manual 02/07/2019 - - Download
Version Description Date Type File Size
QIG 1.10 Revision A2 Quick Installation Guide 06/06/2019 - - Download
QIG 1.03 Revision A1 Quick Installation Guide 30/10/2018 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.03.04 Firmware 22/04/2019 - Download
1.02.02 Firmware 03/11/2017 - Download
1.01.00 Firmware - - Download
Version Description Date
Setup Wizard for Windows Setup Wizard for Windows 02/11/2016 Download
Version Description Date
CE doc 1.20 RevA2 CE document 13/02/2020 Download
CE doc 1.10 RevA2 CE document 19/07/2019 Download
CE doc 1.01 Revision A1 CE document 08/10/2018 Download
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22/09/2016 Download
CE doc 1.00 RevisionA CE document 26/08/2016 Download
