Unified Wireless AC1750 Dual-Band Access Point
DWL-8610AP
- Product Status (Revision A2): End of Sale

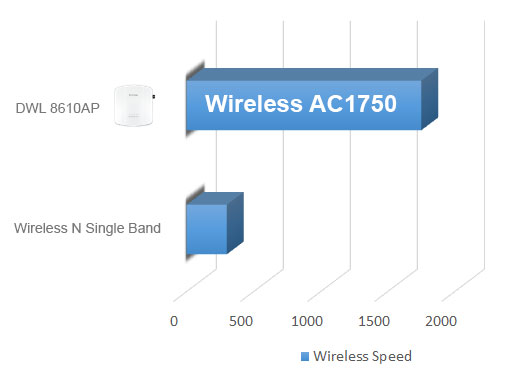

Performance without Compromise
Incorporating the latest leading Wireless AC Chipset, the DWL-8610AP delivers a maximum wireless speed of 1750Mbps, up to 4x the performance of Wireless N*.
Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation

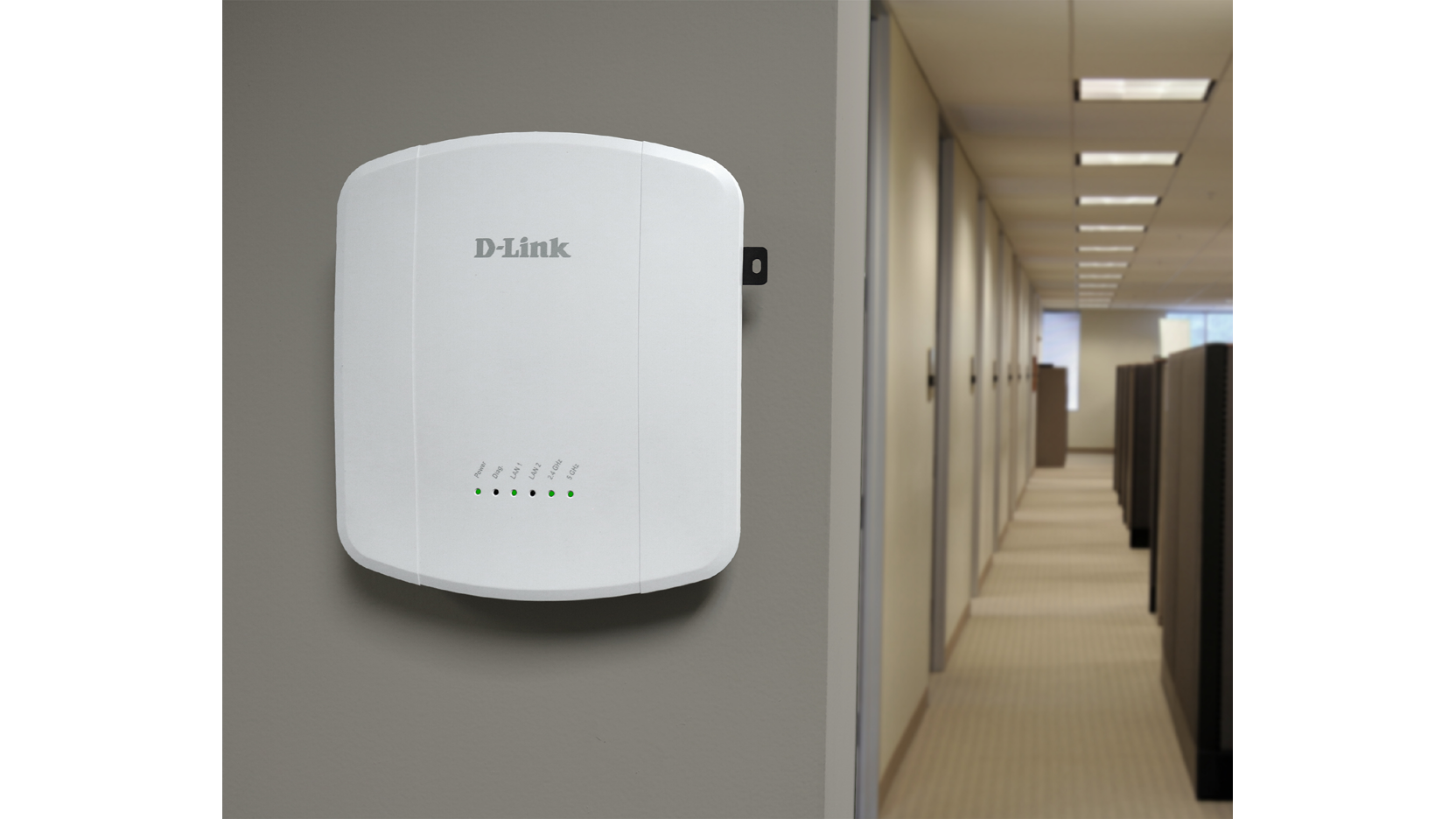

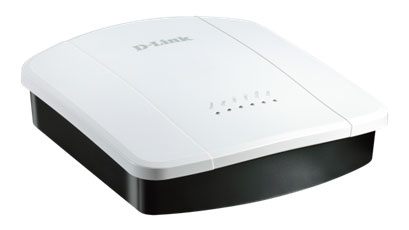

Smart Design
The DWL-8610AP can be mounted easily onto any wall or ceiling. Designed with standard Power over Ethernet requirements, the DWL-8610AP can easily be deployed and connected to any network and configured centrally.

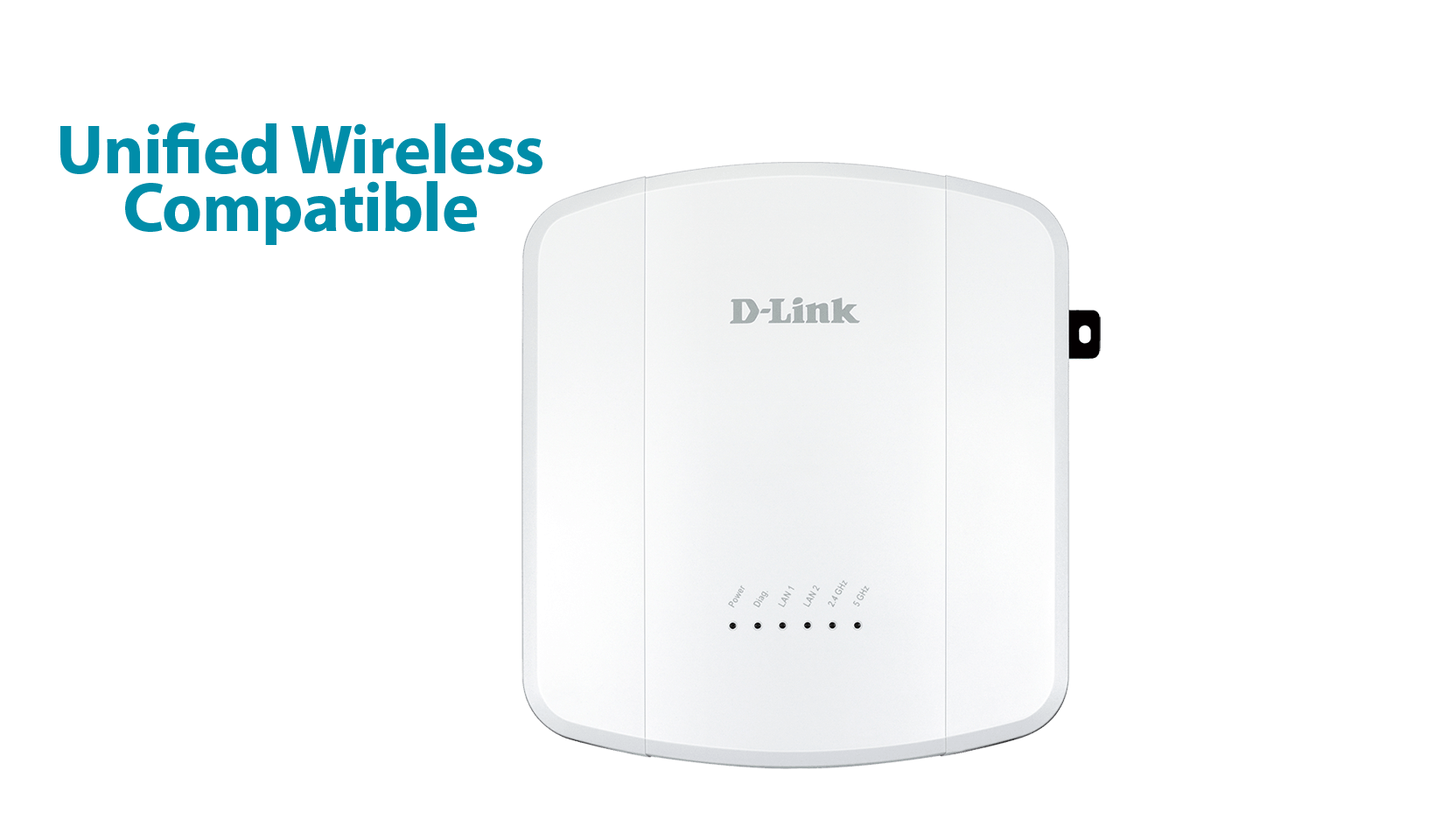

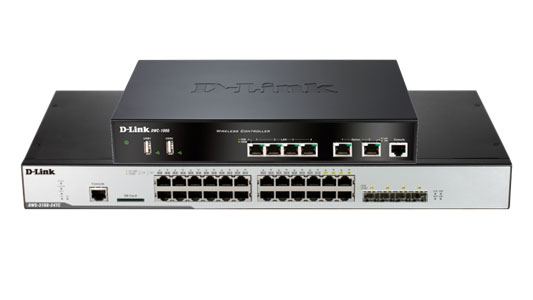

Managed using Wireless Controller or Unified Wireless Switch
All D-Link’s Unified Wireless Access Point can be managed using D-Link’s Wireless Controller or Unified Switch.

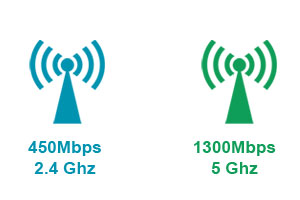

Simultaneous Dual-Band Wireless
Supports up to 1300 Mbps 3x3 MIMO for the 5Ghz band and up to 450Mbps 3x3 MIMO for the 2.4Ghz band

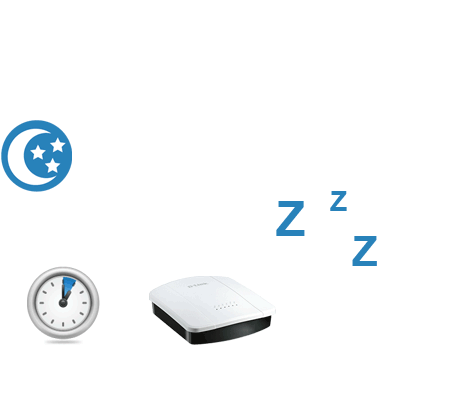

Secure and Green Design
The DWL-8610AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

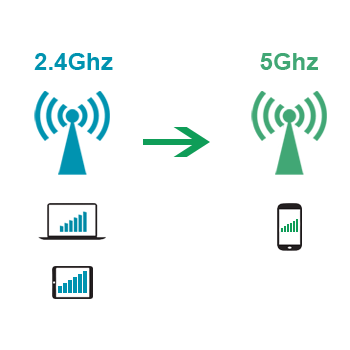

Band Steering Offered as Standard
With band steering, the DWL-8610AP detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

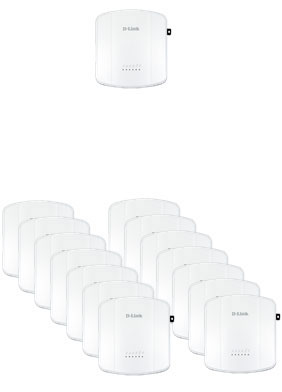

Versatility built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-8610AP coupled with D-Link's Wireless Controller or Switch makes managing your wireless network simple.
-
Standalone
-
Large Deployment

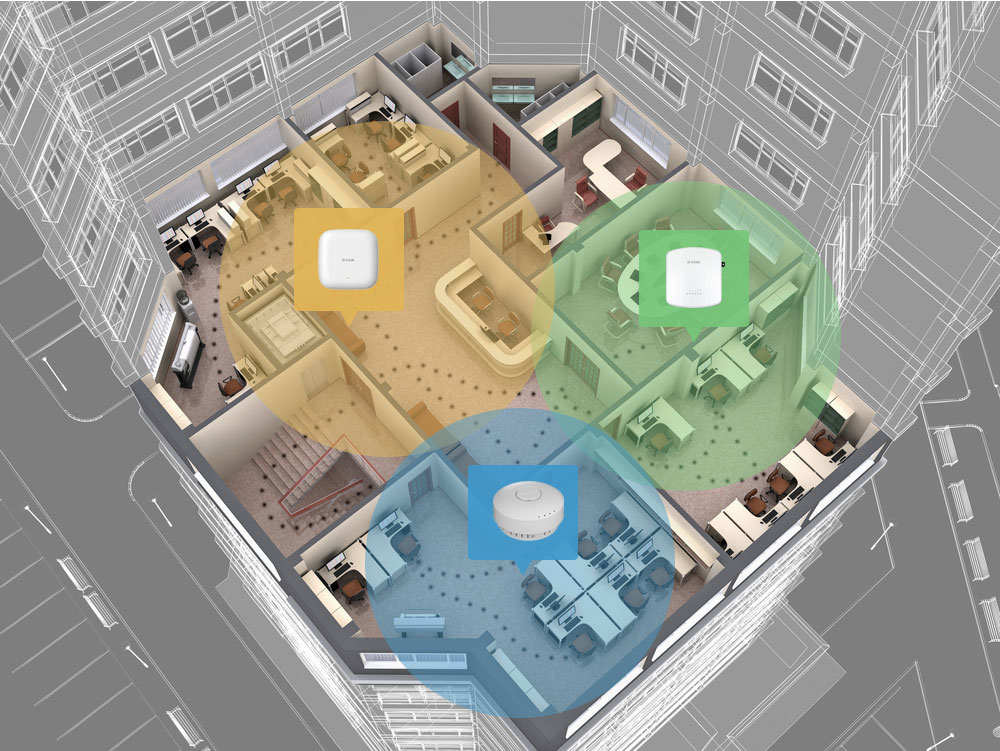

Fast Seamless Roaming
Combining the DWL-8610AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity
* When compared to Wireless N300
Product Comparison
 |
 |
 |
 |
|
|---|---|---|---|---|
| DWL-2600AP | DWL-3600AP | DWL-6600AP | DWL-8610AP | |
| Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N, AC |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| 2.4GHz Throughput1 | 300Mbps | 300Mbps | 300Mbps | 450Mbps |
| 5GHz Throughput1 | - | - | 300Mbps | 1300Mbps |
| Aspect | Indoor | Indoor | Indoor | Indoor |
| Range2 | 100m | 100m | 100m | 100m |
| Suggested number of users | Up to 25 users |
Up to 40 users |
Up to 75 users |
Up to 250 users |
1 Maximum wireless signal rate derived from IEEE standard 802.11 and draft 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
Specs
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
Wireless AC |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1300 Mbps 5 GHz 450 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
5 dBi for 2.4 GHz 6.5 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|

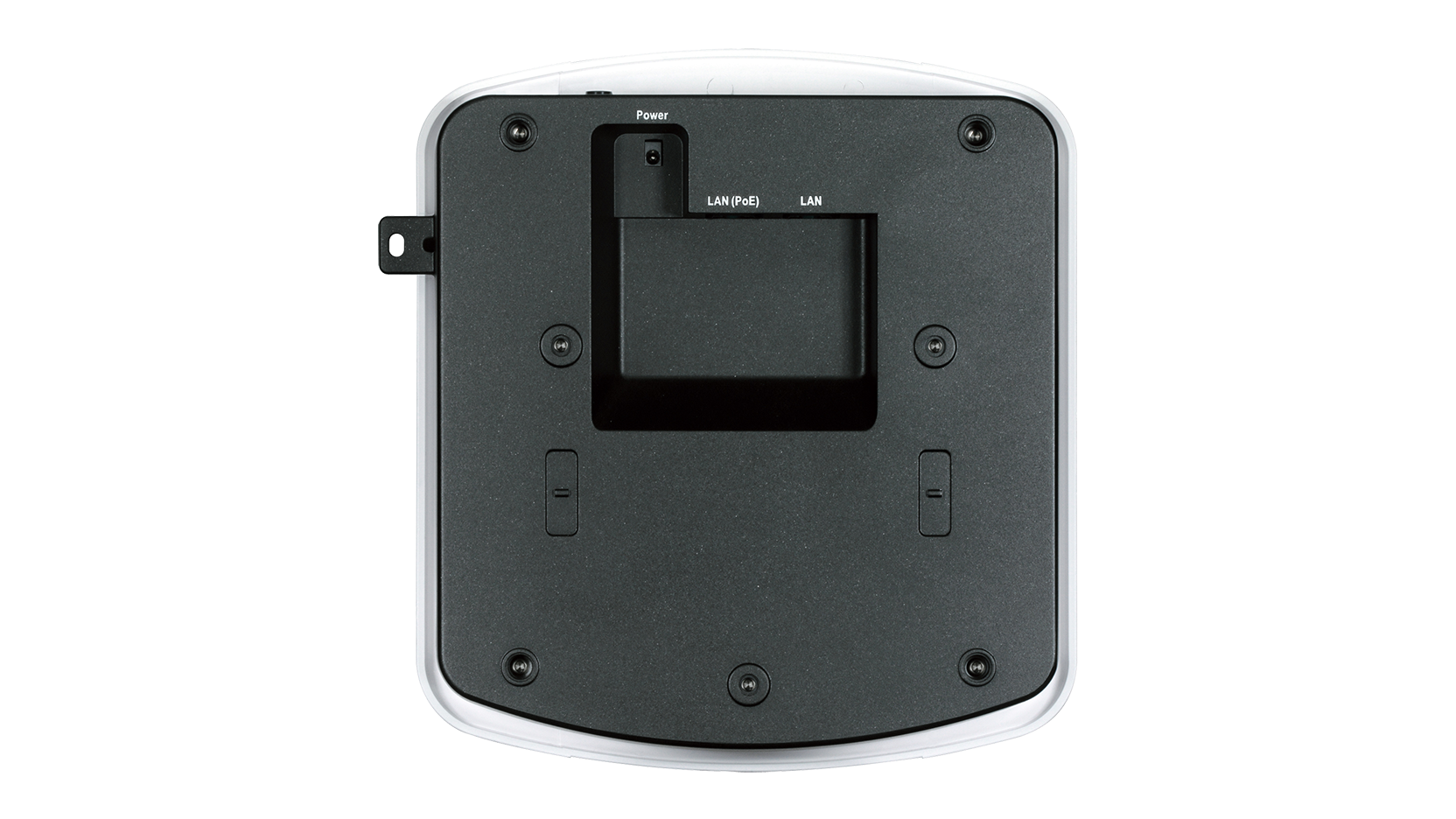

Wired interface
|
2 x Gigabit Ethernet LAN |
|

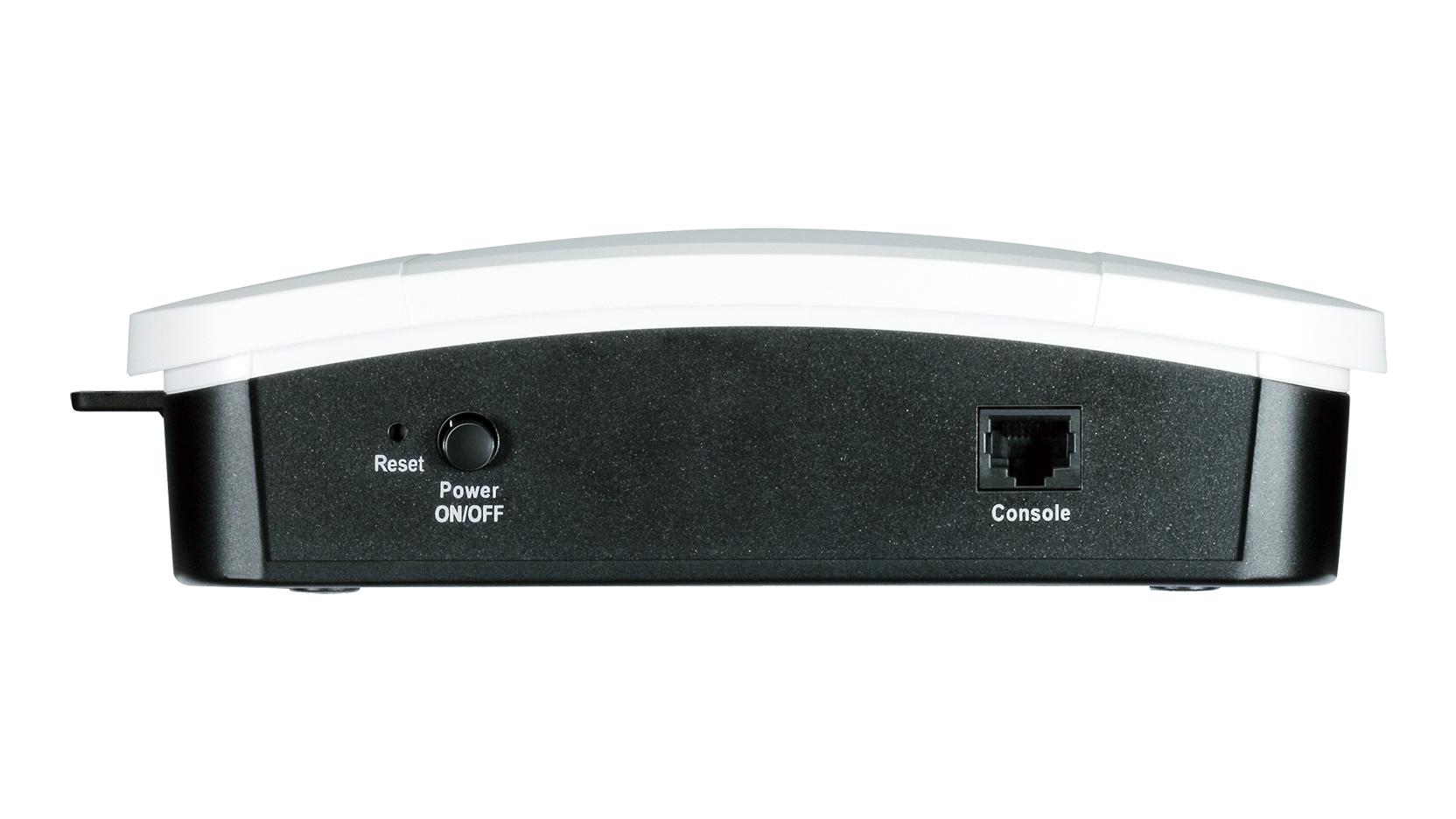

Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Metal Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-3160 DWS-4026 |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
