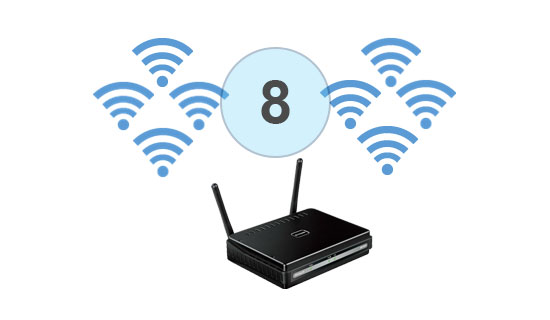

Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.
![](/br/pt/-/media/product-pages/dap/2310/dap_2310_mutliple_ssids.jpg)
Flexible Wireless

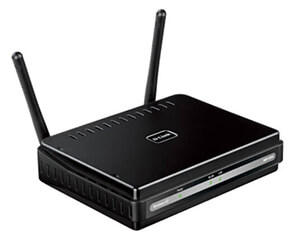

The DAP-2310 is an entry level indoor access point, designed to be deployed in small offices and classrooms to create or expand the capacity of a wireless network.
![Wireless N](/br/pt/-/media/images/b2b_icons/access_points/wireless_n.png)
![mbps](/br/pt/-/media/images/b2b_icons/access_points/speed300.png)
![Range](/br/pt/-/media/images/b2b_icons/access_points/range100m.png)
![Single band](/br/pt/-/media/images/b2b_icons/access_points/single_band.png)
![DAP 2310](/br/pt/-/media/product-pages/dap/2310/dap-2310.png)
2.4Ghz Single-Band Wireless
With a high power radio design, the DAP-2310 supports up to 300 Mbps throughput for the 2.4Ghz band.
![](/br/pt/-/media/product-pages/dap/2310/dap_2310_single_band.gif)

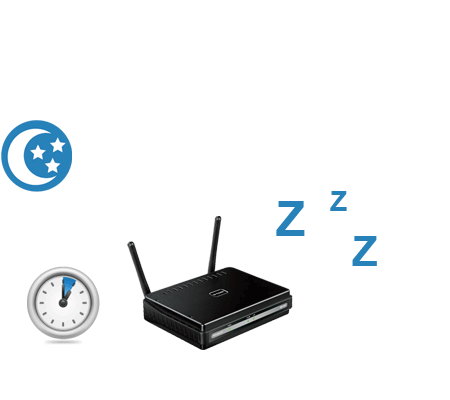

Smart Design
The DAP-2310 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
![](/br/pt/-/media/product-pages/dap/2310/dap_2310_smart_design.jpg)

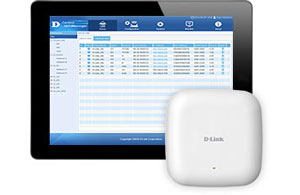

Free Wireless AP Controller software
D-Link’s free Central WiFiManager is a cloud-enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.
![](/br/pt/-/media/product-pages/dap/2660/dap_2660_wireles_controller.jpg)
Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.
![](/br/pt/-/media/product-pages/dap/2310/dap_2310_1000aps.jpg)

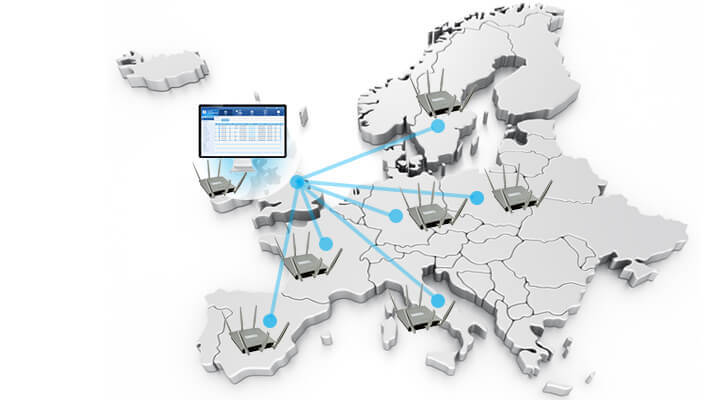

Scalable, flexible, centralised AP management
Manage up to 1000 APs from a central location, regardless of geography.
![](/br/pt/-/media/product-pages/dap/2310/dap_2310_scalable.jpg)
Product Comparison
![]() |
![]() |
![]() |
||
---|---|---|---|---|
DAP-2310 | DAP-2360 | DAP-2690 | ||
Wireless Standard | B, G, N | B, G, N | B, G, N | |
Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
5GHz Throughput | - | - | 300Mbps | |
Aspect | Indoor | Indoor | Indoor | |
Range* | 100m | 100m | 100m |
![]() |
![]() |
|||
---|---|---|---|---|
DAP-2660 | DAP-2695 | |||
Wireless Standard | B, G, N, AC | B, G, N, AC | ||
Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
2.4GHz Throughput | 300Mbps | 300Mbps | ||
5GHz Throughput | 867Mbps | 1300Mbps | ||
Aspect | Indoor | Indoor | ||
Range* | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
![](/br/pt/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=pt-BR&hash=586EFC51387E6651569128E8F4C59D18)
![](/br/pt/-/media/product-pages/dnh/100/dnh_100_a1_side.png?h=100&w=209&la=pt-BR&hash=82D41EBAF5CB38785546815D0F038BA1)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Single-band |
Wireless speed
|
300 Mbps 2.4 GHz |
Antenna type
|
2 detachable omni-directional antennas |
Antenna gain
|
2 dBi for 2.4 GHz |

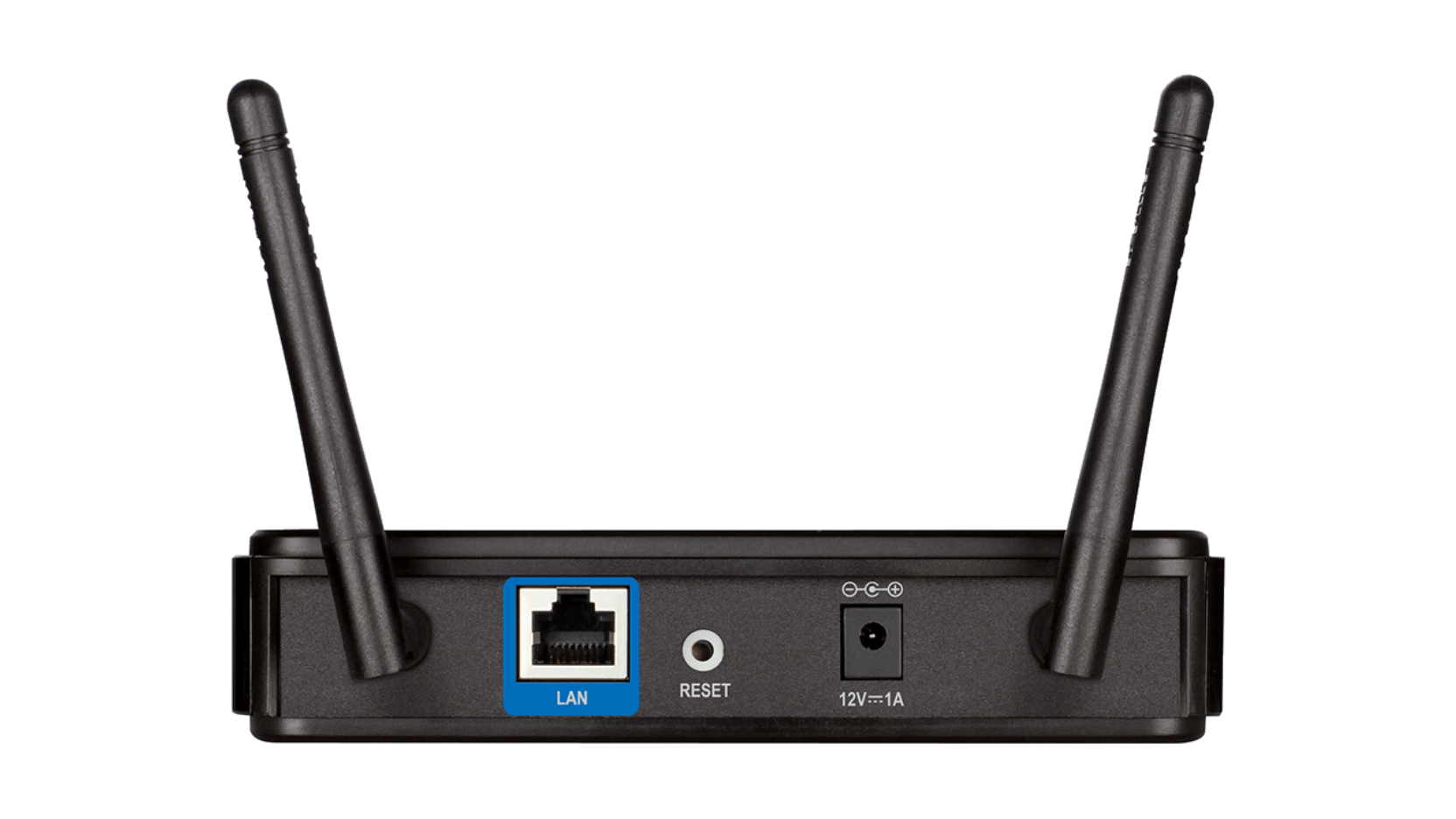

Wired interface
|
1 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Advanced features
|
802.11k/r Roaming MIMO |
Maximum number of SSIDs
|
8 |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
802.1D STP
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
IPv6
|
Supported
|
Management platform
|
Nuclias Connect |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
