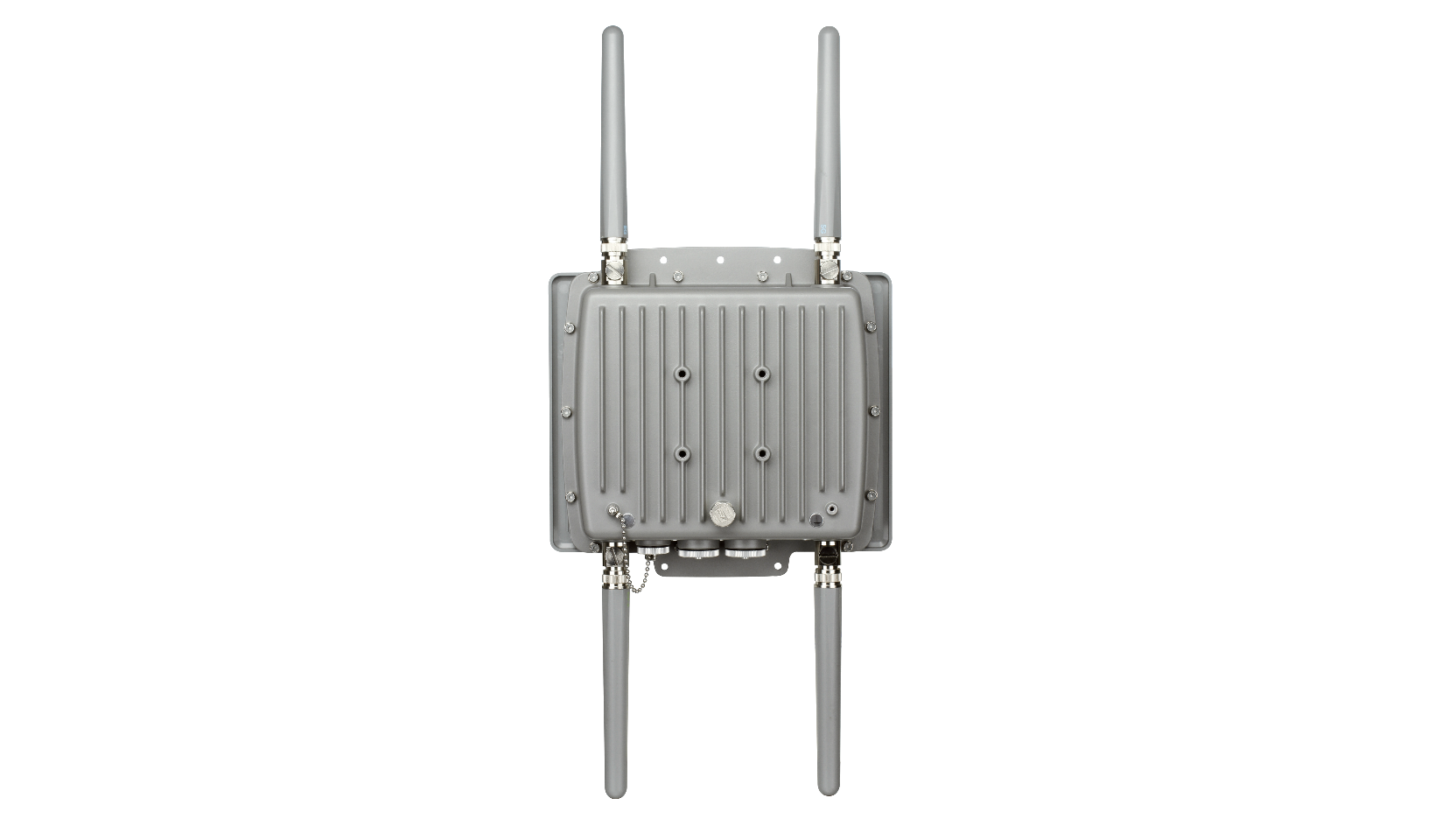

Wireless N Simultaneous Dual-Band PoE Outdoor Access Point

DAP-3690

  • Product Status: End of Life

Simplified outdoor connectivity

The DAP-3690 is a high-quality outdoor Access Point, with high-power radio design is the ideal solution for providing wireless connectivity in all elements.

Broadcast 16 independent SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band

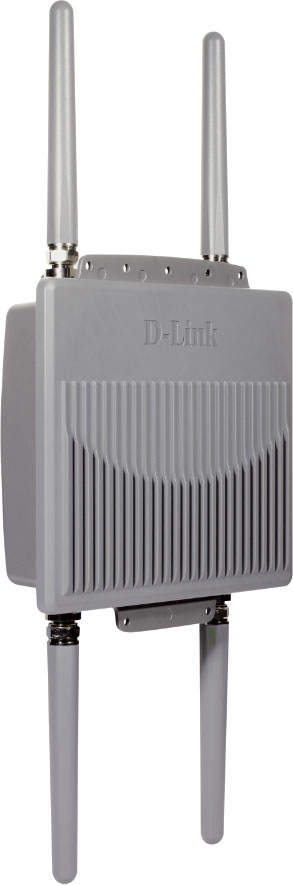

Flexible Wireless

The DAP-3690 is a robust and versatile outdoor access point, designed and built with quality in mind to withstand the harshest environments and capable of being deployed anywhere from manufacturing plants and stadia, to school campuses and golf courses, virtually any venue requiring a robust wireless solution.

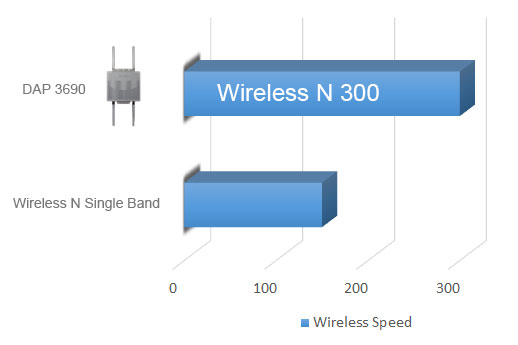

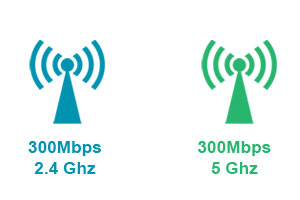

Simultaneous Dual-Band Wireless

Supports up to 300 Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band.

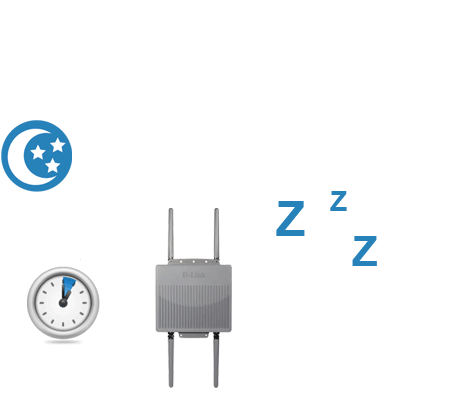

Smart Design

The DAP-3690 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Manage up to 1000 APs

Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

Product Comparison

Wireless N


  DAP-2310 DAP-2360 DAP-2690 DAP-3690
Wireless Standard B, G, N B, G, N B, G, N B, G, N
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps 300Mbps
5GHz Throughput - - 300Mbps 300Mbps
Aspect Indoor Indoor Indoor Outdoor
Range* 100m 100m 100m 100m

Wireless AC


  DAP-2660 DAP-2695
Wireless Standard B, G, N, AC B, G, N, AC
Frequency 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps
5GHz Throughput 867Mbps 1300Mbps
Aspect Indoor Indoor
Range* 100m 100m

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Specification

Download the datasheet.

Type
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Dual-band simultaneous
Antenna type
4 detachable omni-directional antennas
Antenna gain
5 dBi for 2.4 GHz
7 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Outdoor
Type of housing
Metal
IP rating
IP67
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
MIMO
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)
Supported

Download the datasheet.

FAQ

#ViewAll#

Support

This product was phased out on: 27/07/2016
This product's last date of support is on: 26/07/2021
Version Date Type File Size
Datasheet (English) - PDF 7.95mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 3.32mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 1.55mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
Firmware Release notes and MIB 1.10 rc061 Firmware
Release notes and MIB file included		 11/05/2015 - Download
Firmware Release notes and MIB 1.10 rc064 Firmware
Release notes and MIB file included		 26/01/2015 - Download
Firmware 1.00 Firmware 02/08/2012 - Download
Version Description Date
AP Manager 1.10r08

AP Manager

 02/07/2015 Download
AP Array Tool 1.00r05 AP Array Tool 02/08/2012 Download
Version Description Date
CE declaration CE Declaration A1 (English, French, Spanish, Portuguese) 05/12/2012 Download
