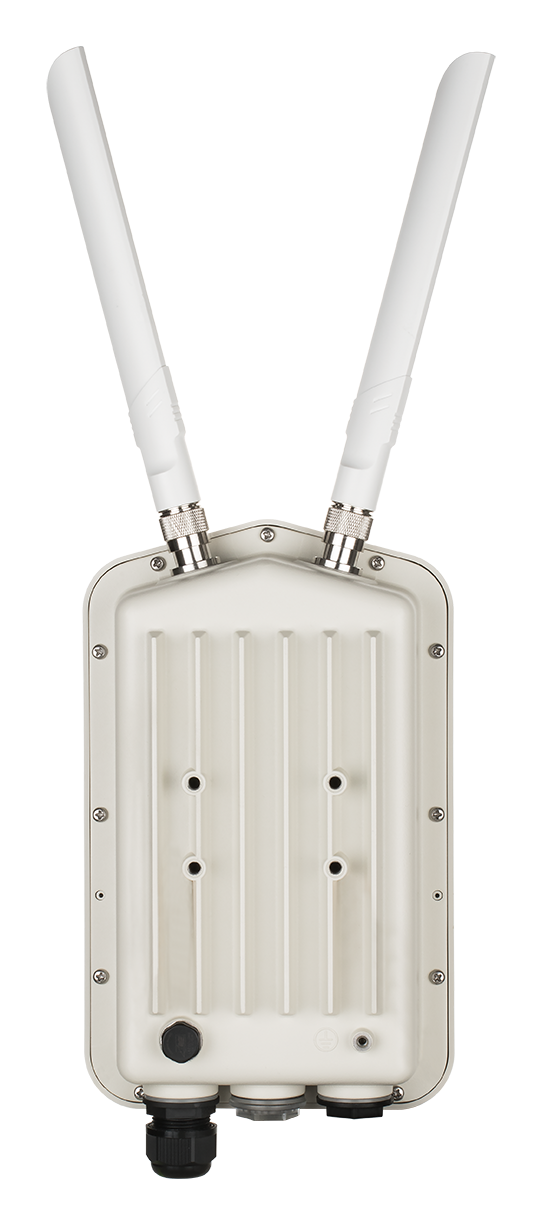

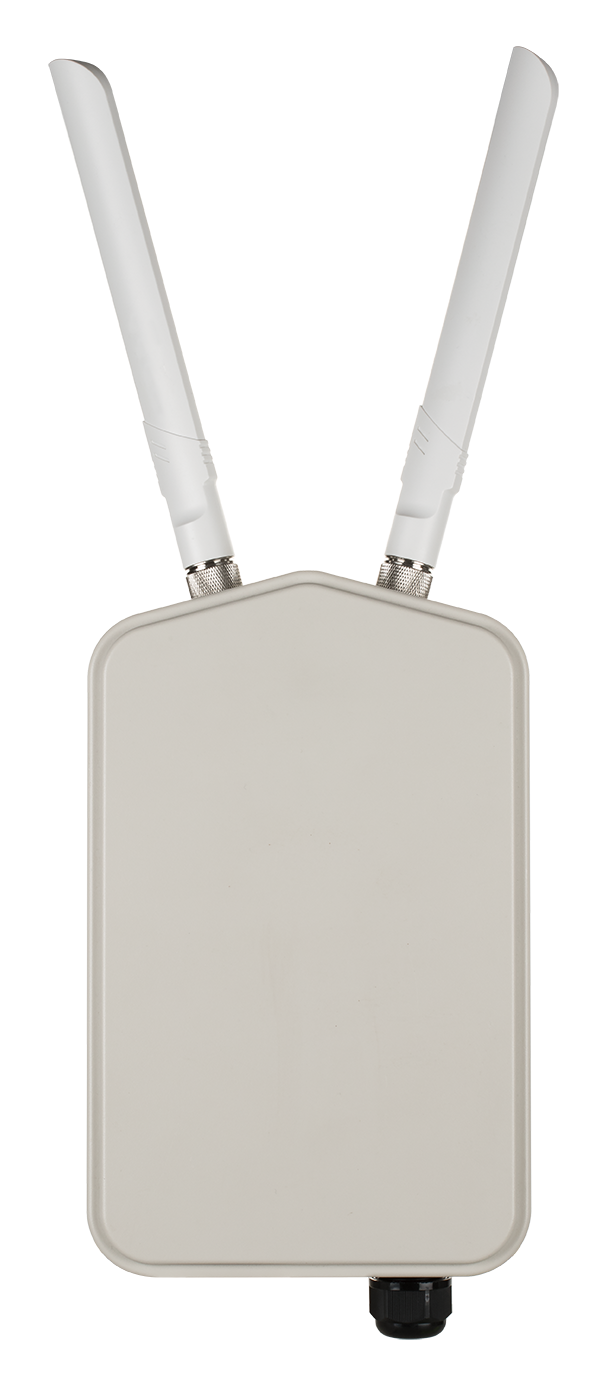

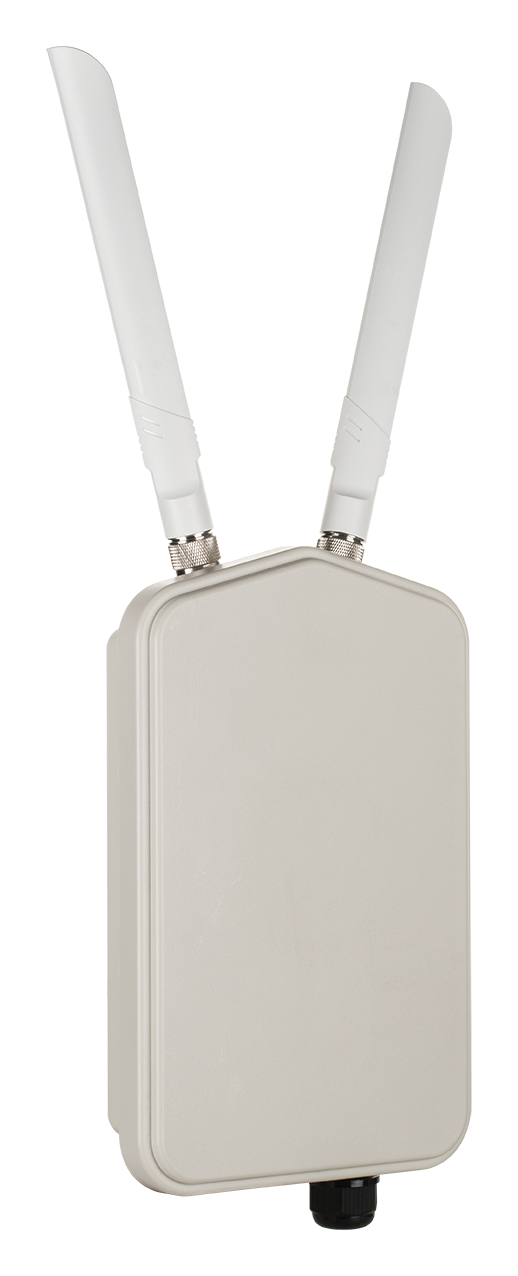

AC1300 Wave 2 Dual-Band Outdoor Unified Access Point
DWL-8720AP
- Product Status: Live
- 802.11ac Wave 2, up to 1.3 Gbps*
- IP67 weatherproof housing
- 2x2 MU-MIMO, detachable omni-directional antennas
- Up to 32 virtual access points per access point
- 802.11k Fast Roaming, and QoS with WMM
- WPA3 security
![](/br/pt/-/media/product-pages/dwl/8720ap/assets/dwl8720ap_03_wave2.png)

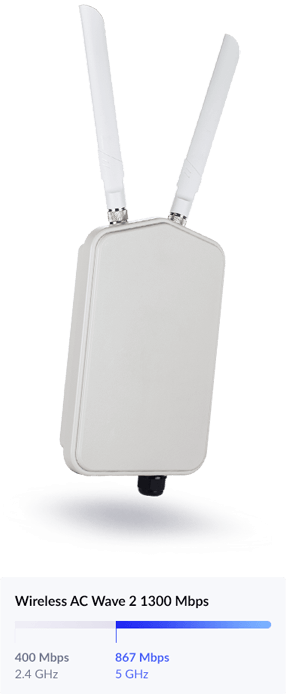

Wireless AC Wave 2
Up to 1.3 Gbps* combined throughput.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_dualband.png)
Dual-Band with band steering
Two bands to improve throughput and coverage as well as reduces co-channel interference.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_mumimo.png)
2 x 2 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network.
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_poe.png)
PoE & flexible installation
It can be wall or pole mounted and power over Ethernet enables installation in hard to reach locations.
![](/br/pt/-/media/product-pages/dwl/8620ap/assets/dwl8620ap_06_icon_fastroaming.png)
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
![](/br/pt/-/media/product-pages/dwl/x8630ap/assets/dwlx8630ap_02_selfhealing.png)
Self-healing
Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.
![](/br/pt/-/media/product-pages/dba/3621p/slices/dba3621p_03_wpa3.png)
Latest Wireless Security
Supports WPA3, MAC address filtering & Rogue AP detection.
Related Products
![](/br/pt/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=pt-BR&hash=AA7DDB3E421AE0C256CDAA2020B0D23D)
Wireless Controller
DWC-2000
![](/br/pt/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=pt-BR&hash=8394DD9348CFB786BF14AD6B2A8D5163)
Wireless Controller
DWC-1000
![](/br/pt/-/media/product-pages/dwl/x8630ap/dwl_x8630ap_a1_front.png?h=100&w=156&la=pt-BR&hash=FFB4CA6388A0D81BAEF85D1BCBE42C15)
AX3600 Wi-Fi 6 Dual-Band Unified Access Point
DWL-X8630AP
![](/br/pt/-/media/product-pages/dwl/8620ape/dwl8620apea1image-lfront.png?h=100&w=163&la=pt-BR&hash=50E009A983521FEBBA74D9282A1355BD)
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
![](/br/pt/-/media/product-pages/dwl/8620ap/dwl_8620ap_front_1.png?h=100&w=156&la=pt-BR&hash=5DB05809301C9FDADFB73E8AE9455206)
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620AP
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
2 detachable omni-directional antennas |
Antenna gain
|
3.5 dBi for 2.4 GHz 5 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

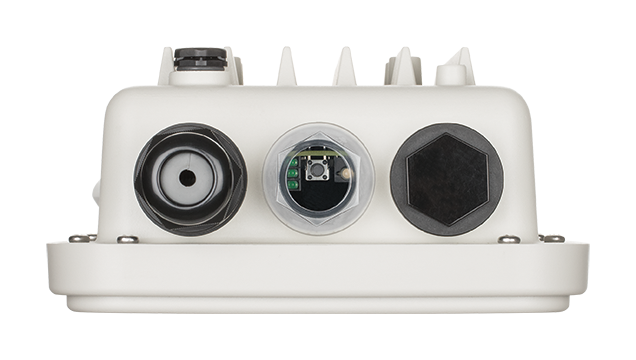

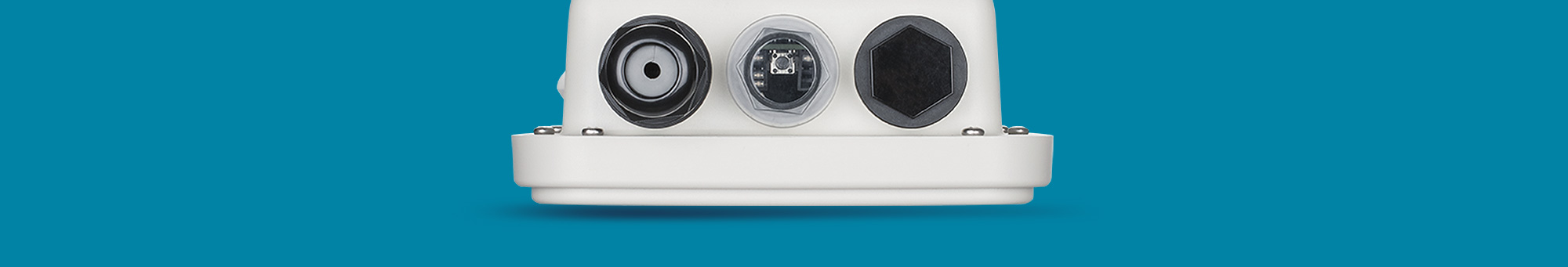

Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Outdoor |
Type of housing
|
Metal |
IP rating
|
IP67 |
Wireless modes
|
Access Point (AP) |
Advanced features
|
Fast Roaming MU-MIMO SmartBeam |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|

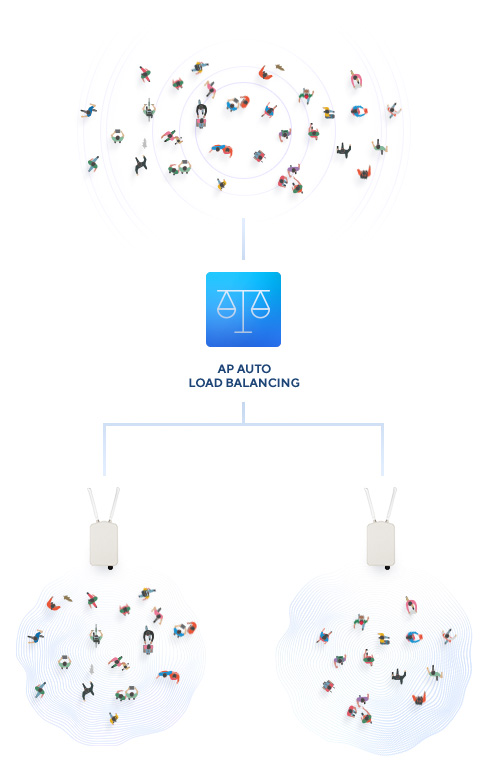

AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
WPA3-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|

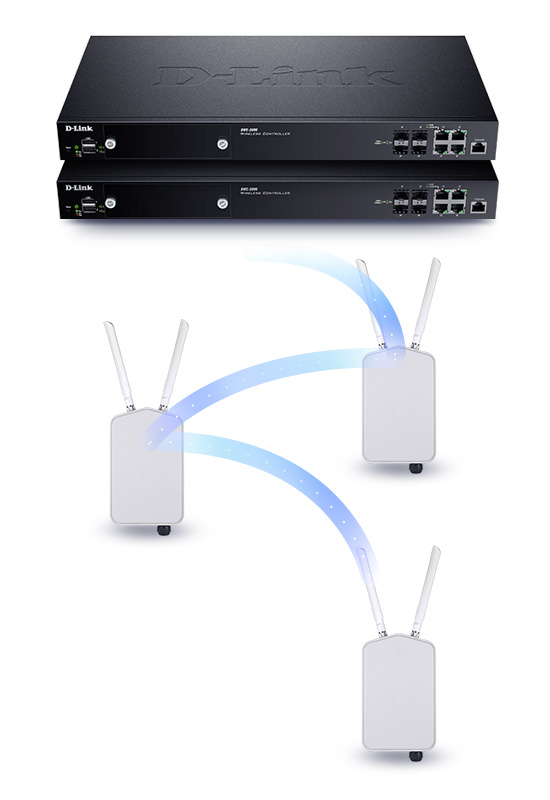

Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
