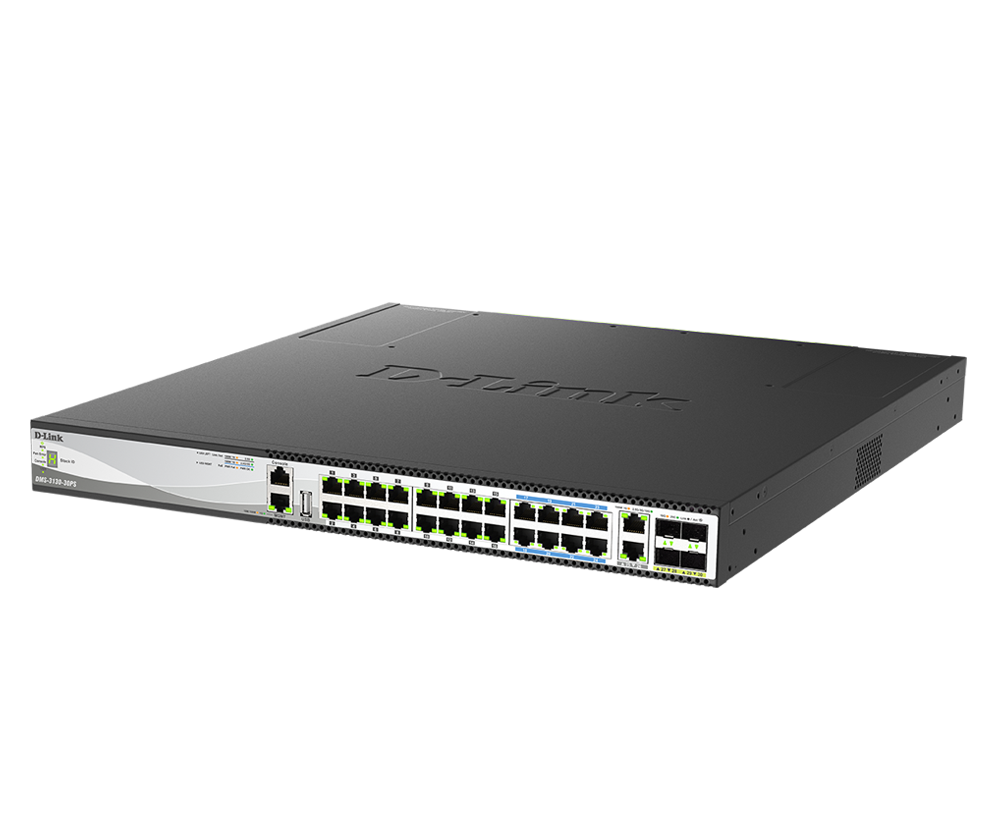

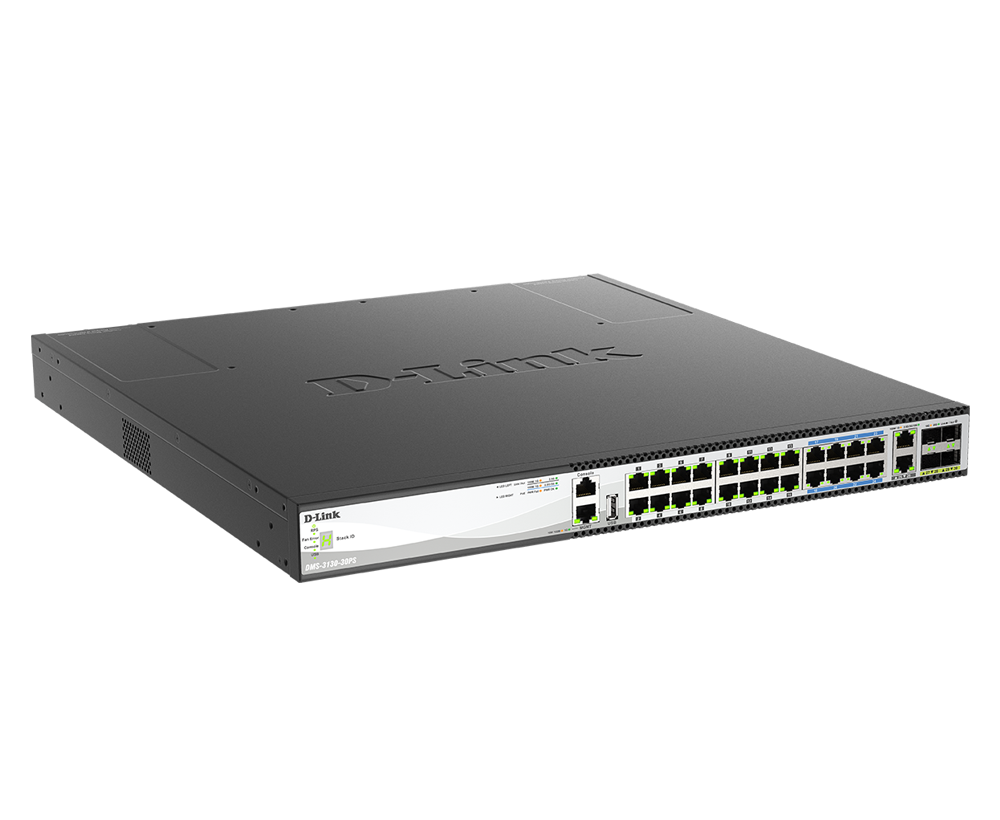

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch
DMS-3130-30PS
- Product Status (Revision A1_v1.01): Live
- 16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports
- 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
- PoE budget of 740W allows powering of numerous external devices (Up to 960W with dual powers)
- Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
- RIP/RIPngand OSFPv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible
- Expand capacity in a flash with physical stacking up to 9 units
- Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
- Support ERPS, Q-in-Q and 6 KV surge protection
- Support 60W PoE compliancewith IEEE 802.3bt
- Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting ,
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Designed to support the modern
SMBs and Metro Ethernet
SMBs and Metro Ethernet
Related Products
30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch
DMS-3130-30PS
30-Port Layer 3 Stackable Multi-Gigabit Managed Switch
DMS-3130-30TS
Specification
Console Port
|
10/100/1000BASE-T RJ-45 port for out-of-band CLI management |
---|---|
Interfaces
|
1 x Stacking Cost 1 x USB 2.0 Type A port 4 x Stacking Ports |
Optional Redundant Power Supply
|
AC (DPS-PWR740AC) hot-swappable internal redundant power supplies DC (DPS-PWR740DC) hot-swappable internal redundant power supplies |
Performance
|
64 Byte Packet Forwarding Rate 298 Mpps Packet Buffer Memory 4 MB |
PoE Ports
|
16 x 100M/1/2.5GBASE-T PoE ports 2 x 100M/1/2.5/5/10GBASE-T ports 4 x 10/25G SFP28 ports 8 x 100M/1/2.5/5GBASE-T 60W PoE ports |
PoE Power Budget
|
740 W 960 W (dual power supplies) |
RJ-45 Management Port
|
10/100/1000BASE-T RJ-45 port for out-of-band IP management |
Standards
|
IEEE 802.3af IEEE 802.3at IEEE 802.3bt |
Switching Capacity
|
400 Gbps |
