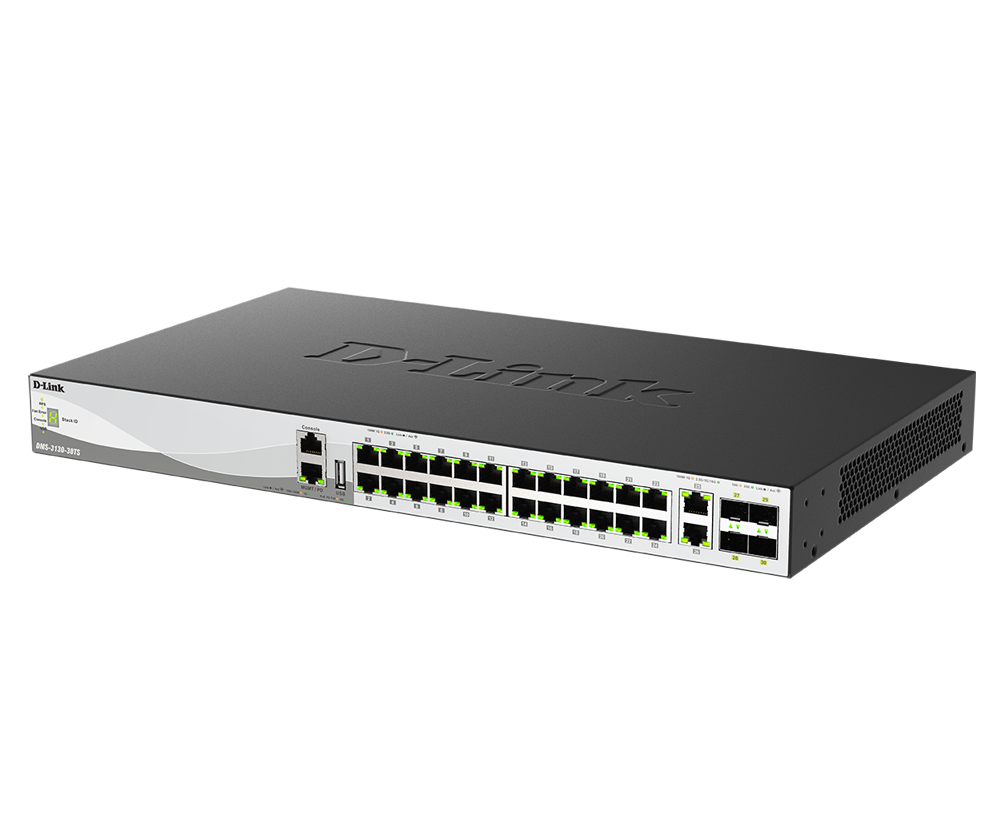

30-Port Layer 3 Stackable Multi-Gigabit Managed Switch
DMS-3130-30TS
- Product Status (Revision A1_v1.01): Live
- 24 x 100M/1/2.5GBASE-T ports
- 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
- Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
- RIP/RIPngand OSFPv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible
- Expand capacity in a flash with physical stacking up to 9 units
- Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
- Support ERPS, Q-in-Q and 6 KV surge protection
- Support AC/DC redundant power supply
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Designed to support the modern
SMBs and Metro Ethernet
SMBs and Metro Ethernet
Related Products
30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch
DMS-3130-30PS
30-Port Layer 3 Stackable Multi-Gigabit Managed Switch
DMS-3130-30TS
Specs
|
Console Port
|
10/100/1000BASE-T RJ-45 port for out-of-band CLI management |
|---|---|
|

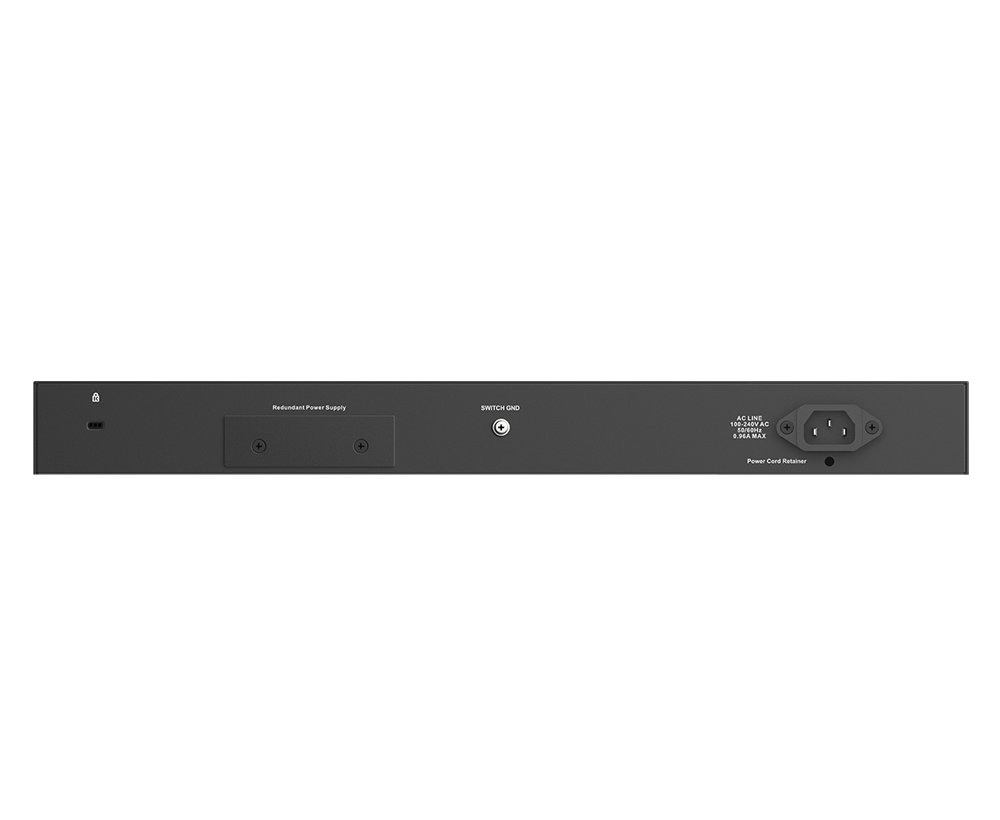

Optional Redundant Power Supply
|
DPS-500A DPS-500DC |
|
Performance
|
64-Byte Packet Forwarding Rate 268 Mpps Packet Buffer Memory 4 MB |
|
PoE Ports
|
2 x 100M/1/2.5/5/10GBASE-T ports 24 x 100M/1/2.5GBASE-T ports 4 x 10/25G SFP28 ports |
|
RJ-45 Management Port
|
10/100/1000BASE-T RJ-45 port for out-of-band IP management |
|
Interfaces
|
1 x Stacking Cost 1 x USB 2.0 Type A port 4 x Stacking Ports |
|
Switching Capacity
|
360 Gbps |
