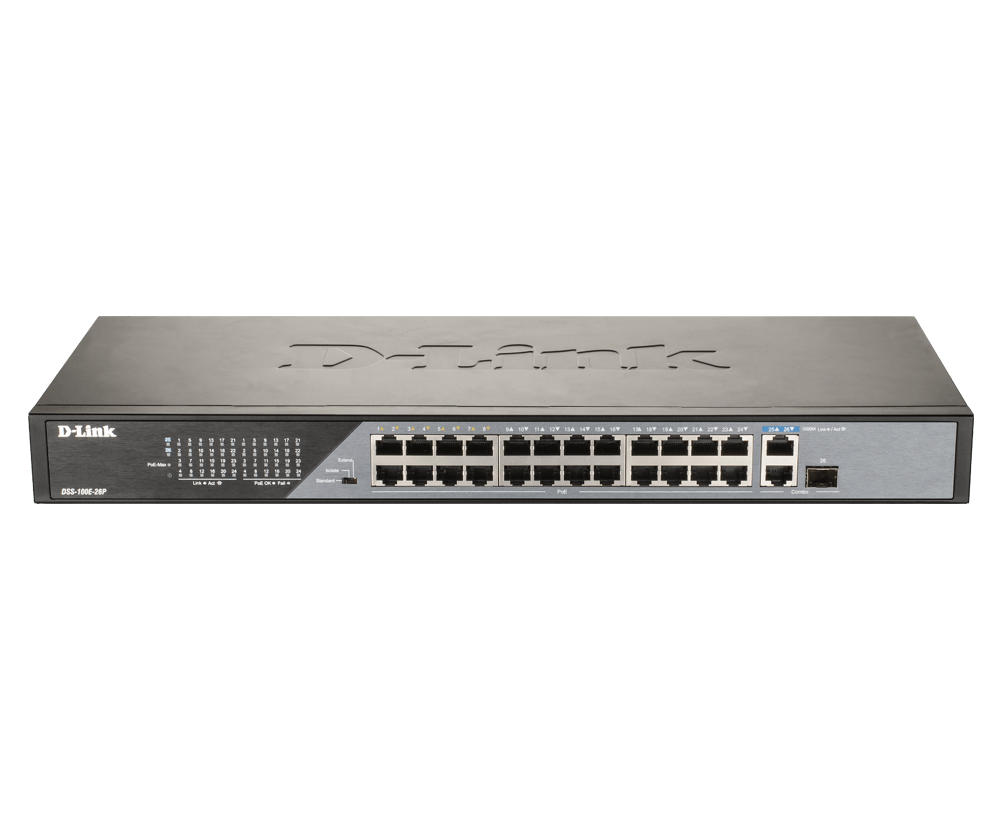

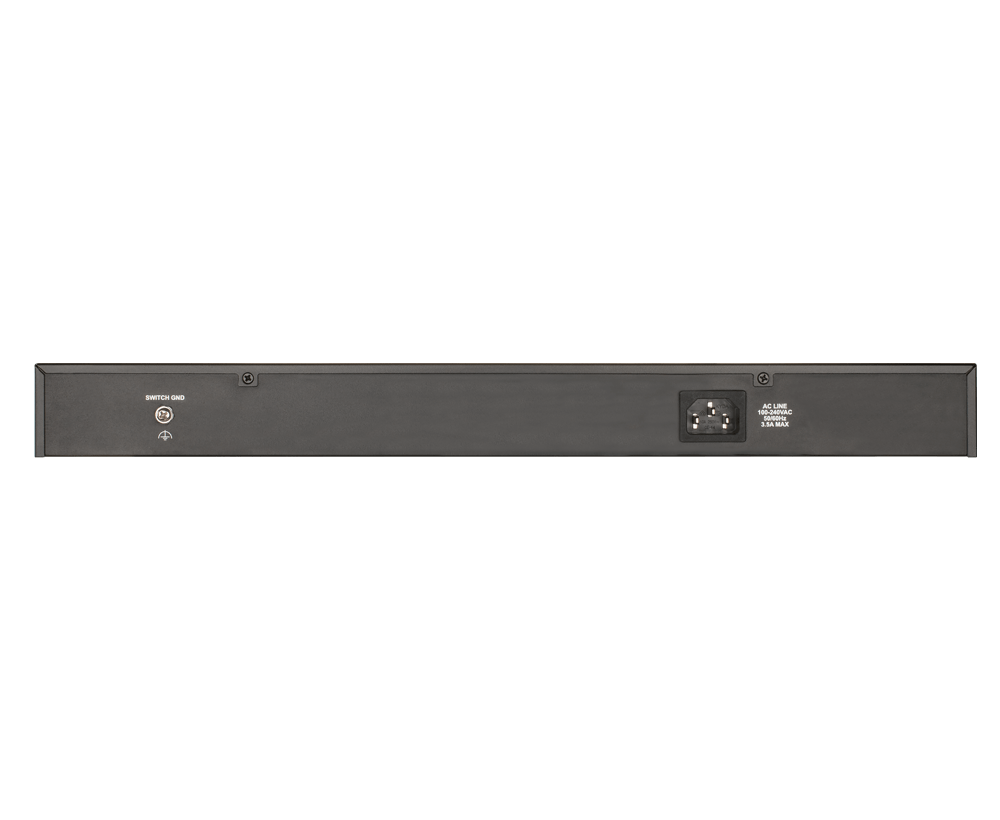

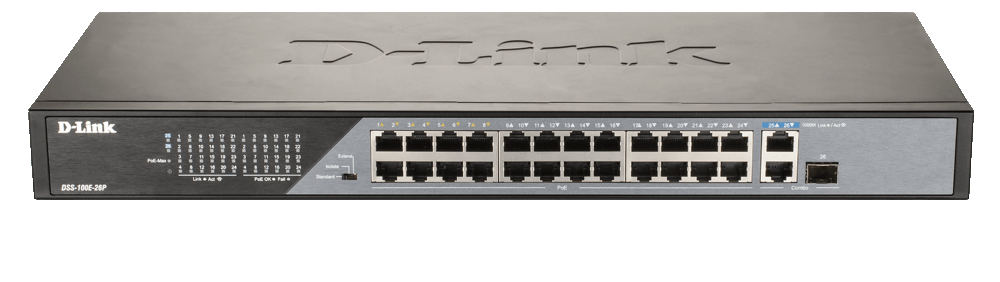

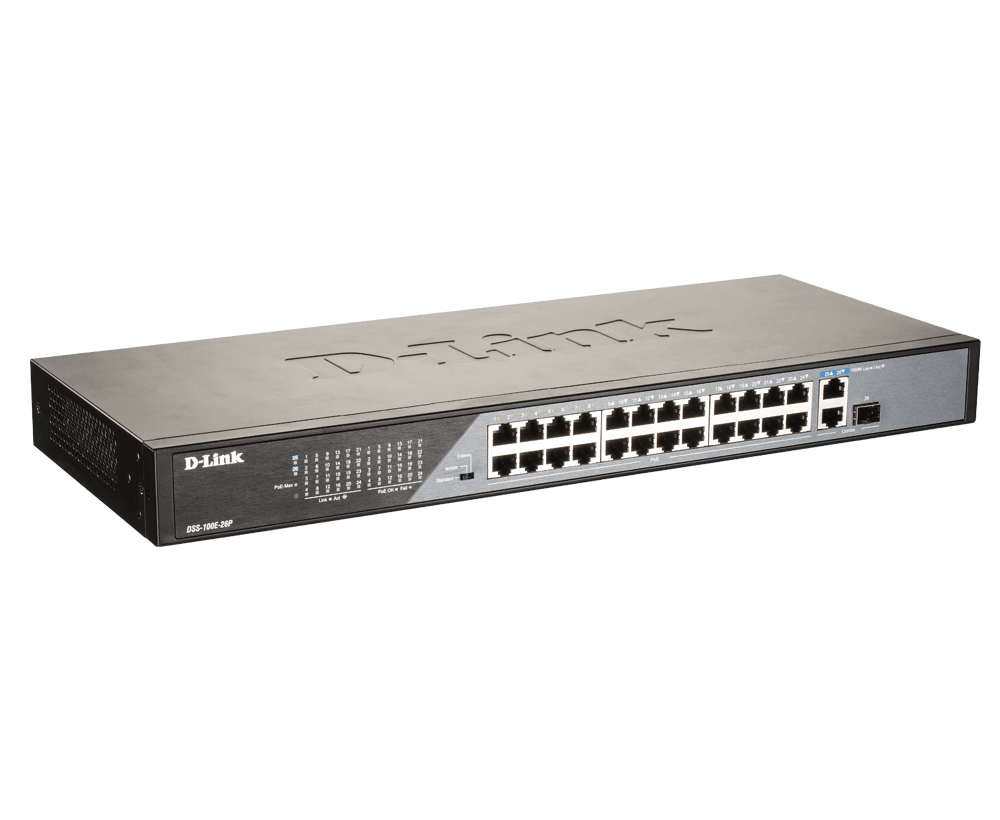

26 Port Unmanaged PoE Surveillance Switch

DSS-100E-26P

  • Product Status ($name): Live
  • Supports power delivery to devices up to 250m away
  • 24 x 10/100 Mbps PoE Ethernet ports
  • 1x GbE port and 1x GbE/SFP combo port
  • 230W power budget
  • Equipped with 6kV surge protection to help prevent damage from lightning and power surges
  • With Plug & Play, your network is ready to go immediately
  • IEEE 802.3az Energy Efficient Ethernet is good for the planet and your budget
  • RoHS Compliant

Download the datasheet.

Where to buy

Designed for Surveillance

The DSS-100E-26P has a total PoE power budget of 230W, meaning it’s ready to power your PoE-ready cameras and other devices. Simply connect your PoE supported devices and you’ve got a capable surveillance network with minimal wiring required. Meanwhile, it has an extended PoE range of 250m, reaching devices further than before. Finally, it has 1 Gigabit and 1 Gigabit/SFP combo uplink port which provides ample bandwidth. This ensures smooth transmission of footage when connecting to Network Video Recorder (NVR) or core switch.

Highlights

30W PoE per Port

Extended range up to 250m

PoE LED Indicator

Plug and Play

Reach Further

The DSS-100E-26P surveillance switch can maximize your PoE camera deployment distance to virtually anywhere, drastically lowering the cost for installing any PoE Ethernet devices. It provides you huge time and cost savings and greater flexibility of endpoint device positioning.

.Power your device up to a distance of 250 meters at 10 Mbps
.Innovative design reduces long distance power transmission loss
.Leverages existing copper twisted-pair cabling to deliver electrical power over the same network connection

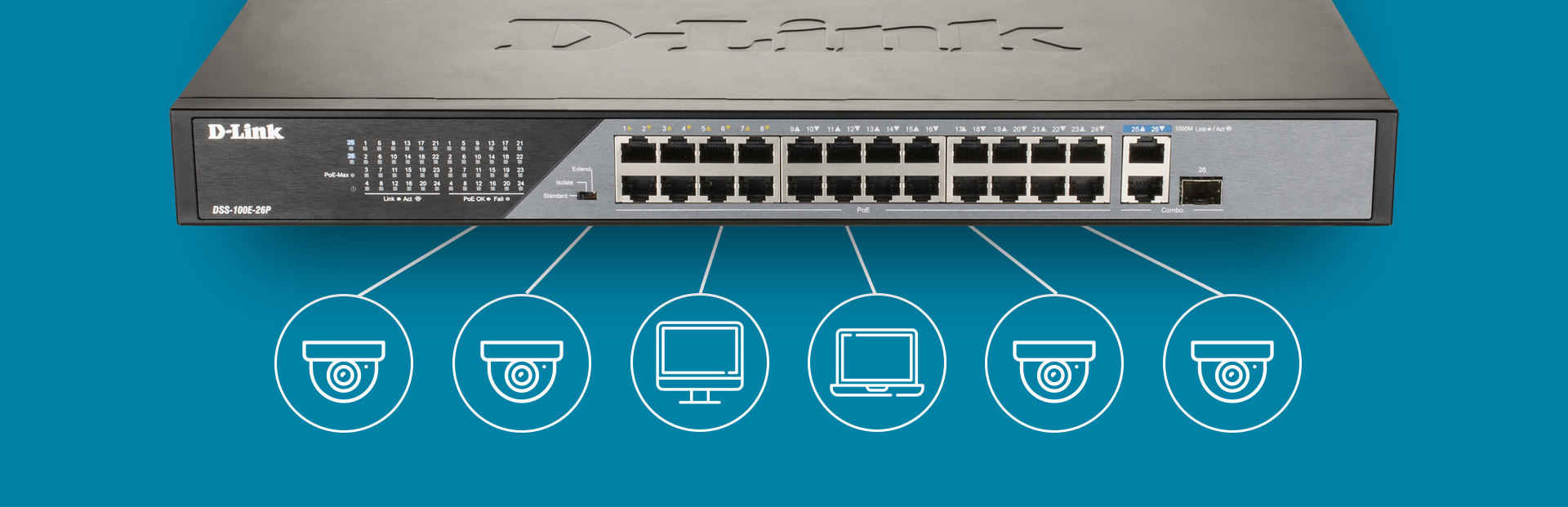

Versatility for a Range of Scenarios

The DSS-100E-26P is not just for cameras, it’s ready to support other surveillance-related devices as well. Simply plug in the devices you need to complete your setup; the switch can then automatically detect what has been connected. It then adjusts accordingly to provide optimal performance. Ideal for a power surveillance with minimal management fuss.


Compatible with:

- Network Attached Storage

- Laptops & Desktops

- Indoor/Outdoor IP Cameras

- PoE Extenders




Weather the Storm

The DSS-100E-26P is equipped with 6kV surge protection. This keeps the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your vital surveillance systems continue to function without interruption.

Plug & Play

The DSS-100E-26P is developed with simple setup in mind. No configuration is required, simply connect the switch to your network and you are ready to go. You can start adding IP cameras, IP phones and other PoE and non-PoE capable devices to your network. Meanwhile, the switch will automatically detect what has been connected and intelligently adjust to offer optimal performance. It is ideal for those who want a powerful network, without the fuss of managing it.


Compatible with a Wide Range of D-Link PoE-Enabled Cameras

Our switches are highly compatible with a variety of cameras. You can be safe in the knowledge that the cameras and devices you choose will easily integrate into your surveillance network.


Better for Your Budget, Better for the Planet

To further cut OPEX, the DSS-100E-26P supports IEEE 802.3az Energy Efficient Ethernet. The switch can automatically detect when network traffic is being passed through ports. Those that are not in use are powered down. Not just good for cutting operating costs, but better for the environment too.

Surveilance Switch Series

Product DSS-100E-6P
DSS-100E-6P
6 Port Unmanaged PoE Surveillance Switch
DSS-100E-9P
DSS-100E-9P
9 Port 10/100 PoE Unmanaged Surveillance Switch
DSS-100E-18P
DSS-100E-18P
18 Port 10/100BASE-TX PoE Unmanaged Surveillance Switch
DSS-100E-26P
DSS-100E-26P
26 Port Unmanaged PoE Surveillance Switch
Interface
  • 4 x 10/100Base-T PoE ports
  • 8 x 10/100Base-T PoE ports
  • 1 x 1000Base-T port
  • 16 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
  • 24 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
Performance
Switch Capacity1.2 Gbps3.8 Gbps7.2 Gbps8.8 Gbps
Max. Packet Forwarding Rate0.89 Mpps2.6784 Mpps5.36 Mpps6.55 Mpps
PoE
PoE Budget55 W 92 W 230 W 230 W
Technical Specification
Maximum Power Consumption Maximum: 64.20 W (PoE on),
1.57 W (PoE off)
Maximum: 113.4 watts (PoE on),
4.57watts (PoE off)
Maximum: 265 watts (PoE on),
16.89 watts (PoE off)
Maximum: 269.28 W (PoE on),
14.84 W (PoE off)
Power Feature100 - 240 VAC100 - 240 VAC100 - 240 VAC100 - 240 VAC
Surge/Lightning Protection6kV6kV6kV6kV
Dimension177 x 104 x 26 mm177 x 104 x 26 mm440 x 178 x 44 mm440 x 178 x 44 mm

Acoustic
35.3 dB(A)
Humidity
Operation 10%-95% RH
Storage: 5% ~ 95% RH
Maximum Heat Dissipation
Maximum: 29.71BTU/h
Power On: 6.91 BTU/h, Maximum: 29.71BTU/h
Maximum Power Consumption
PoE OFF: AC: 14.84 W; DC: 8.92 W
PoE ON: AC: 269.28 W, DC: 239.57 W
MTBF
402,625 hours
Packet Buffer Size
4 Mbits
PoE Power Budget
230W
Standby Power Consumption
100V: 9.12 W
240V: 9.18 W
Switch Capacity
8.8 Gbps
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -40 to 70 °C (-40 to 158 °F)
