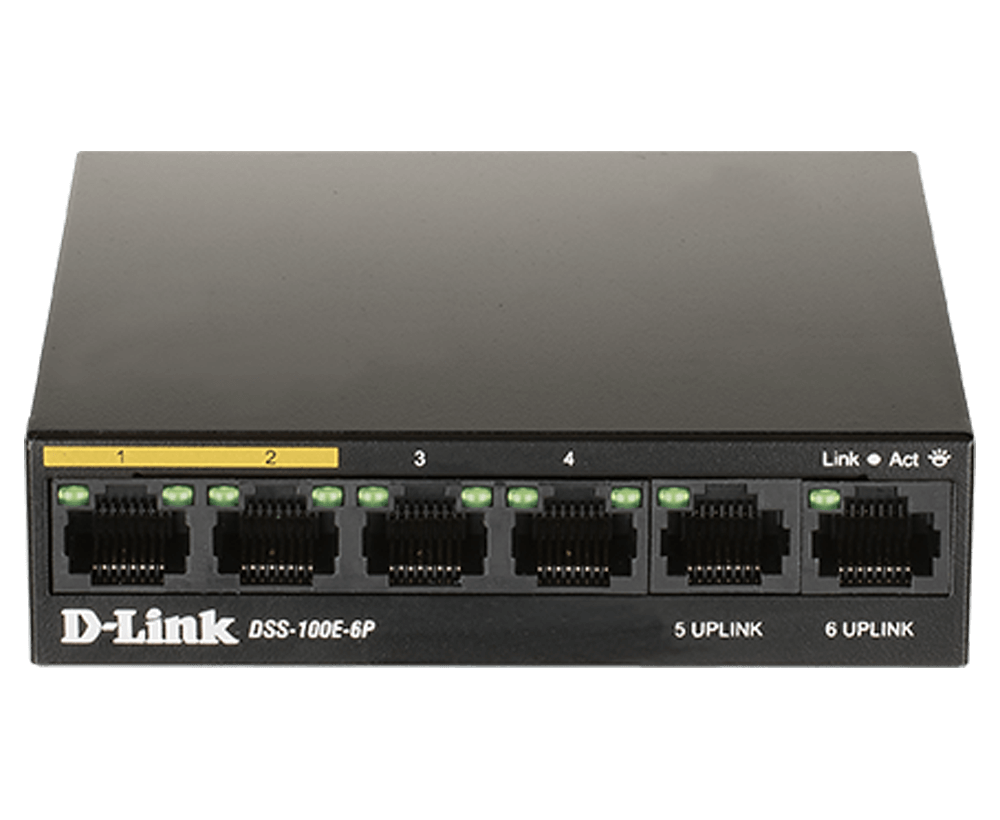

6 Port Unmanaged PoE Surveillance Switch

DSS-100E-6P

  • Product Status ($name): Live
  • Supports power delivery to devices up to 250m away
  • 4 x 10/100 Mbps PoE Ethernet ports
  • 2 x 10/100 Mbps Uplink ports
  • 55W power budget
  • Equipped with 6kV surge protection to prevent damage from lightning and power surges
  • With plug & play, your network is ready to go immediately
  • IEEE 802.3az Energy Efficient Ethernet is not just good for the planet, but for your budget as well
  • RoHS Compliant

Download the datasheet.

Where to buy

Designed for Surveillance

The DSS-100E-6P has a total PoE power budget of 55W, meaning it’s ready to power your PoE-ready cameras and other devices. Simply connect your PoE supported devices and you’ve got a capable surveillance network with minimal wiring required. Meanwhile, it has an extended PoE range of 250m, reaching devices further than before. Finally, it has 2 Fast ethernet uplink ports which provides ample bandwidth. This ensures smooth transmission of footage when connecting to Network Video Recorder (NVR) or core switch.

Highlights

30W PoE per Port

Extended range up to 250m

PoE LED Indicator

Plug and Play

Reach Further

The DSS-100E-6P surveillance switch can maximize your PoE camera deployment distance to virtually anywhere, drastically lowering the cost for installing any PoE Ethernet devices. It provides you huge time and cost savings and greater flexibility of endpoint device positioning.

.Power your device up to a distance of 250 meters at 10 Mbps
.Innovative design reduces long distance power transmission loss
.Leverages existing copper twisted-pair cabling to deliver electrical power over the same network connection

Versatility for a Range of Scenarios

The DSS-100E-6P is not just for cameras, it’s ready to support other surveillance-related devices as well. Simply plug in the devices you need to complete your setup; the switch can then automatically detect what has been connected. It then adjusts accordingly to provide optimal performance. Ideal for a power surveillance with minimal management fuss.


Compatible with:

- Network Attached Storage

- Laptops & Desktops

- Indoor/Outdoor IP Cameras

- PoE Extenders






Weather the Storm

The DSS-100E-6P is equipped with 6kV surge protection. This keeps the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your vital surveillance systems continue functioning uninterrupted.

Plug & Play

The DSS-100E-6P is developed with simple setup in mind. No configuration is required, simply connect the switch to your network and you are ready to go. You can start adding IP cameras, IP phones and other PoE and non-PoE capable devices to your network. Meanwhile, the switch will automatically detect what has been connected and intelligently adjust to offer optimal performance. It is ideal for those who want a powerful network, without the fuss of managing it.


Compatible with a Wide Range of D-Link PoE-Enabled Cameras

Our switches are highly compatible with a variety of cameras. You can be safe in the knowledge that the cameras and devices you choose will easily integrate into your surveillance network.


Better for Your Budget, Better for the Planet

To further cut OPEX, the DSS-100E-6P supports IEEE 802.3az Energy Efficient Ethernet. The switch can automatically detect when network traffic is being passed through ports. Those that are not in use are powered down. Not just good for cutting operating costs, but better for the environment too.

Surveilance Switch Series

Product DSS-100E-6P
DSS-100E-6P
6 Port Unmanaged PoE Surveillance Switch
DSS-100E-9P
DSS-100E-9P
9 Port 10/100 PoE Unmanaged Surveillance Switch
DSS-100E-18P
DSS-100E-18P
18 Port 10/100BASE-TX PoE Unmanaged Surveillance Switch
DSS-100E-26P
DSS-100E-26P
26 Port Unmanaged PoE Surveillance Switch
Interface
  • 4 x 10/100Base-T PoE ports
  • 8 x 10/100Base-T PoE ports
  • 1 x 1000Base-T port
  • 16 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
  • 24 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
Performance
Switch Capacity1.2 Gbps3.8 Gbps7.2 Gbps8.8 Gbps
Max. Packet Forwarding Rate0.89 Mpps2.6784 Mpps5.36 Mpps6.55 Mpps
PoE
PoE Budget55 W 92 W 230 W 230 W
Technical Specification
Maximum Power Consumption Maximum: 64.20 W (PoE on),
1.57 W (PoE off)
Maximum: 113.4 watts (PoE on),
4.57watts (PoE off)
Maximum: 265 watts (PoE on),
16.89 watts (PoE off)
Maximum: 269.28 W (PoE on),
14.84 W (PoE off)
Power Feature100 - 240 VAC100 - 240 VAC100 - 240 VAC100 - 240 VAC
Surge/Lightning Protection6kV6kV6kV6kV
Dimension177 x 104 x 26 mm177 x 104 x 26 mm440 x 178 x 44 mm440 x 178 x 44 mm

MAC Address Table Size
1K
Maximum Power Consumption
PoE OFF: AC: 1.57 W, DC: 1.39 W
PoE ON: AC: 64.20 W, DC: 56.47 W
Operating Humidity
10% - 95% RH
Operating Temperature
0 - 40 °C (32 - 104 °F)
Packet Buffer Size
0.45 Kbits
PoE Power Budget
55W
PoE Standard
IEEE802.3af
IEEE802.3at
Power Input
100 to 240 V AC
Storage Humidity
5% - 95% RH
Storage Temperature
-40 - 70°C (-40 - 158 °F)
Switching Capacity
1.2 Gbps
Transmission Method
Store-and-Forward
