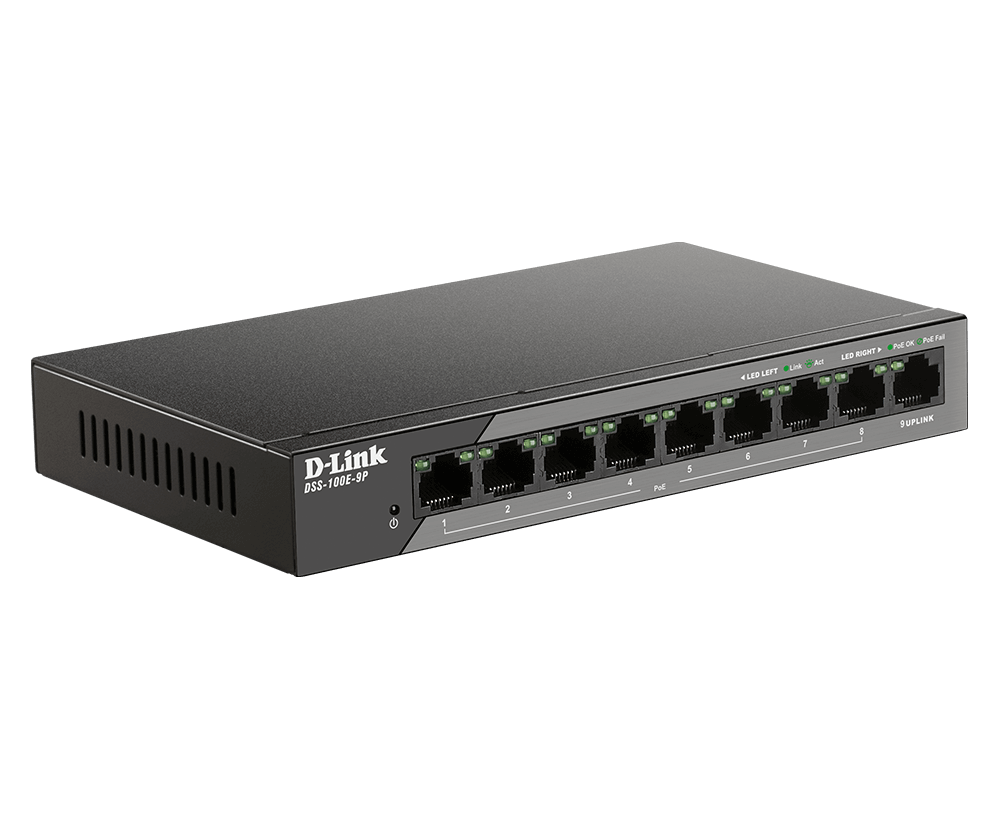

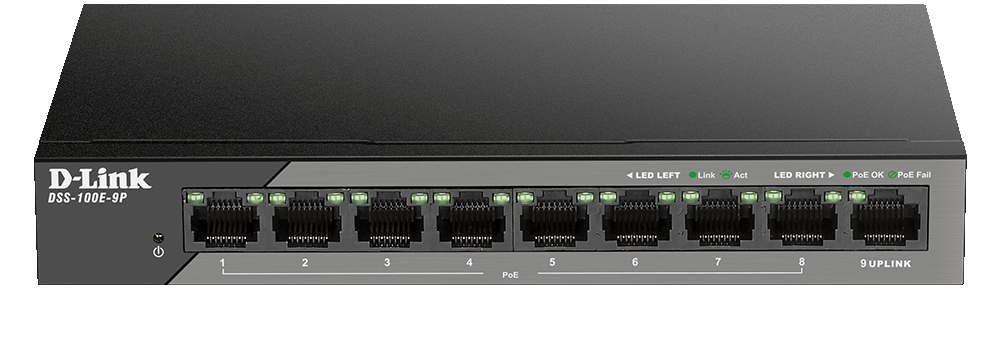

9-Port 10/100 PoE Unmanaged Surveillance Switch

DSS-100E-9P

  • Product Status ($name): Live
  • Supports power delivery to devices up to 250m away
  • 8 x 10/100 Mbps PoE Ethernet ports
  • 92W power budget, with up to 30W per port
  • 1 x Gigabit Ethernet port allows ample bandwidth for uplink connections
  • Equipped with 6kV surge protection to prevent damage from lightning and power surges
  • With plug & play, your network is ready to go immediately
  • Auto detection of long range connected devices

Download the datasheet.

Where to buy

Designed for Surveillance

The DSS-100E-9P comes with powerful PoE capabilities. Able to supply up to 30W per port with a total power budget of 230W to devices up to 250m away, it can be the heart of your surveillance setup. Simply connect your PoE supported devices and you’ve got a capable surveillance network with minimal wiring required. Finally, its Gigabit uplink provides ample bandwidth. This ensures smooth transmission of footage when connecting to a Network Video Recorder (NVR) or core switch.

iconethernetsvg100x100
Large PoE power budget
iconextendedrangesvg100x100
Extended range up to 250m
iconLEDpoesvg100x100
PoE LED Indicators
iconuplinksvg100x100
Gigabit Uplink

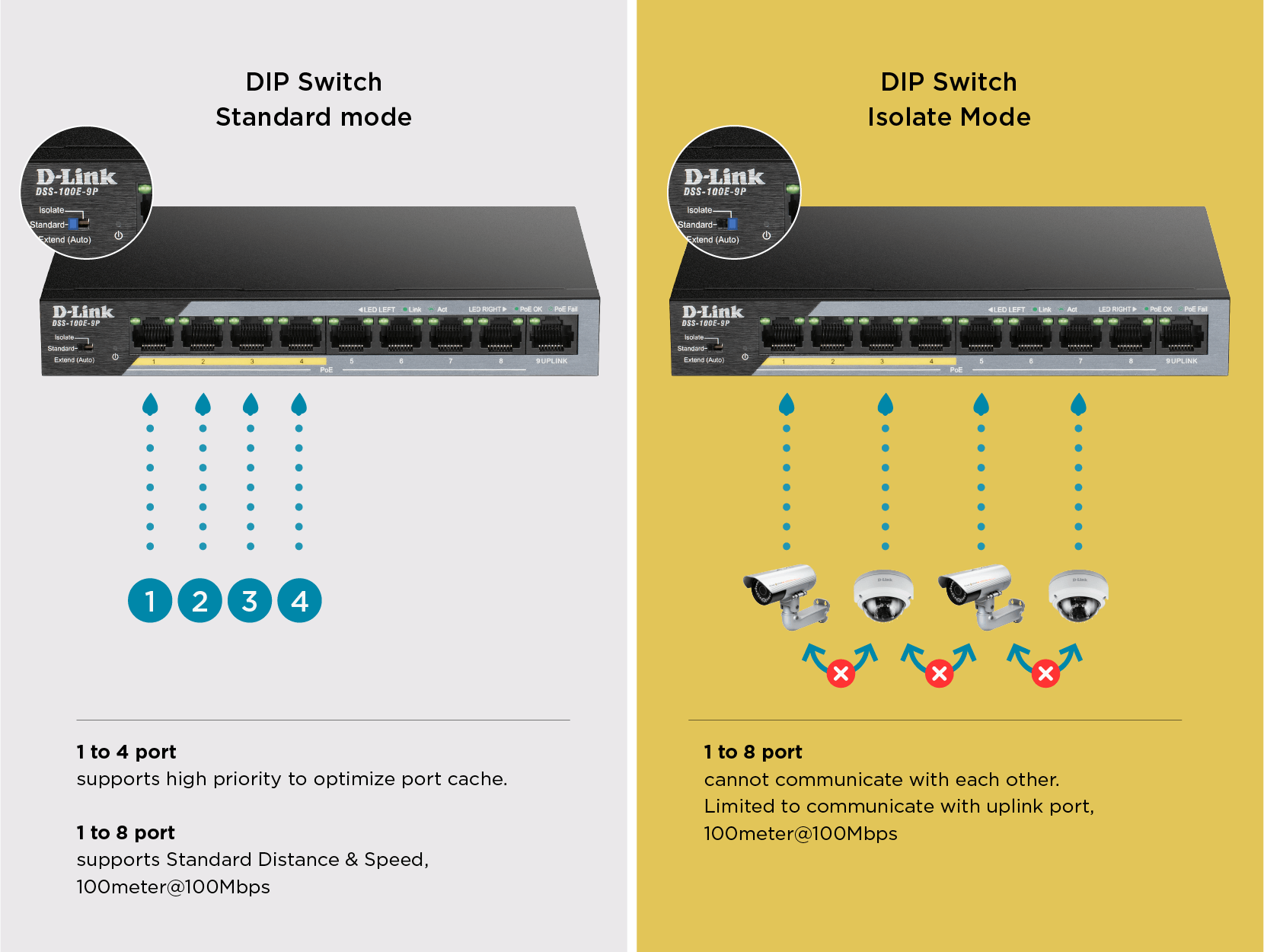

Reach Further

The DSS-100E-9P surveillance switch can maximize your PoE camera deployment distance to virtually anywhere, drastically lowering the cost for installing any PoE Ethernet devices. It provides you huge time and cost savings and greater flexibility of endpoint device positioning.

.Power your device up to a distance of 250 meters at 10 Mbps
.Innovative design reduces long distance power transmission loss
.Leverages existing copper twisted-pair cabling to deliver electrical power over the same network connection

*Extend mode (Auto): 1-8 Port Auto detect Ethernet Cable length; when the wiring length exceed 100 meters, DSS-100E would automatically lower speed to 10Mbps to support long-distance transmission.

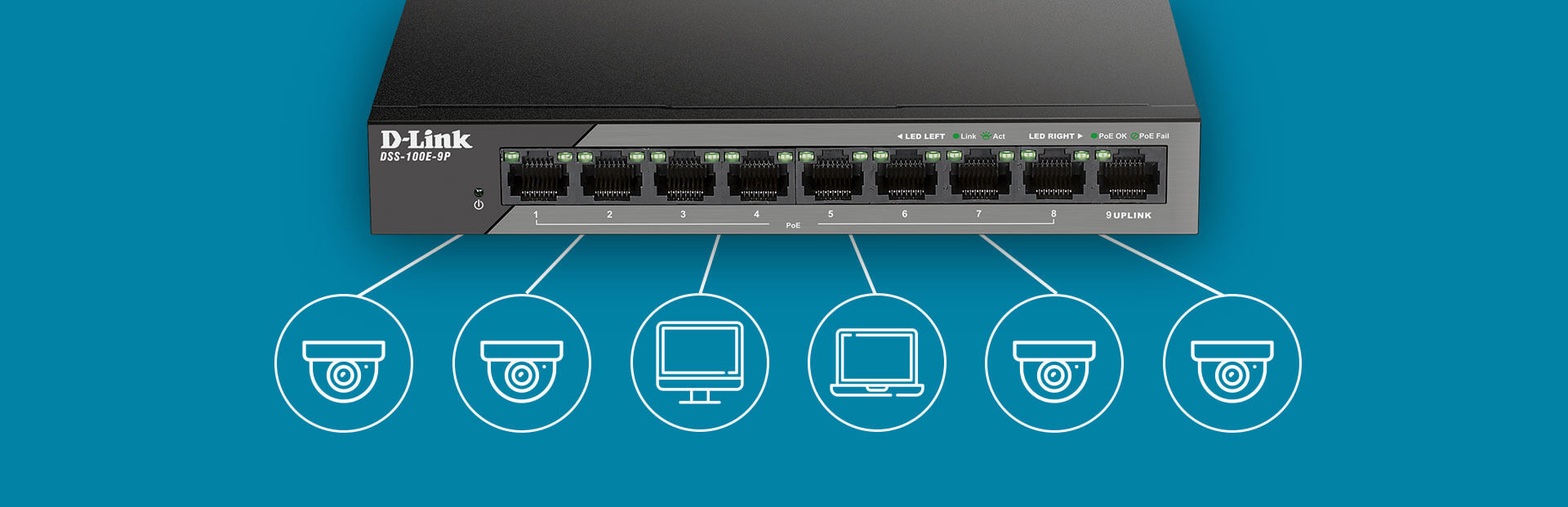

Versatility for a Range of Scenarios

The DSS-100E-9P is designed for a surveillance scenario, therefore it is ready to support all related devices. Simply plug in the devices you need to complete your setup and the switch can automatically detect what has been connected. It then adjusts according to provide optimal performance. Ideal for a power surveillance with minimal management fuss.


Compatible with:

- Network Attached Storage

- Laptops & Desktops

- Indoor/Outdoor IP Cameras

- PoE Extenders




Weather the Storm

The DSS-100E-9P is equipped with 6kV surge protection. This keeps the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your vital surveillance systems continue functioning uninterrupted.

Plug & Play

The DSS-100E-9P is developed with simple setup in mind. No configuration is required, simply connect the switch to your network and you are ready to go. You can start adding IP cameras, IP phones and other PoE capable devices to your network. Meanwhile, the switch will automatically detect what has been connected and intelligently adjust according to compatibility and optimal performance. It is ideal for those who want a powerful network, without the fuss of managing it.

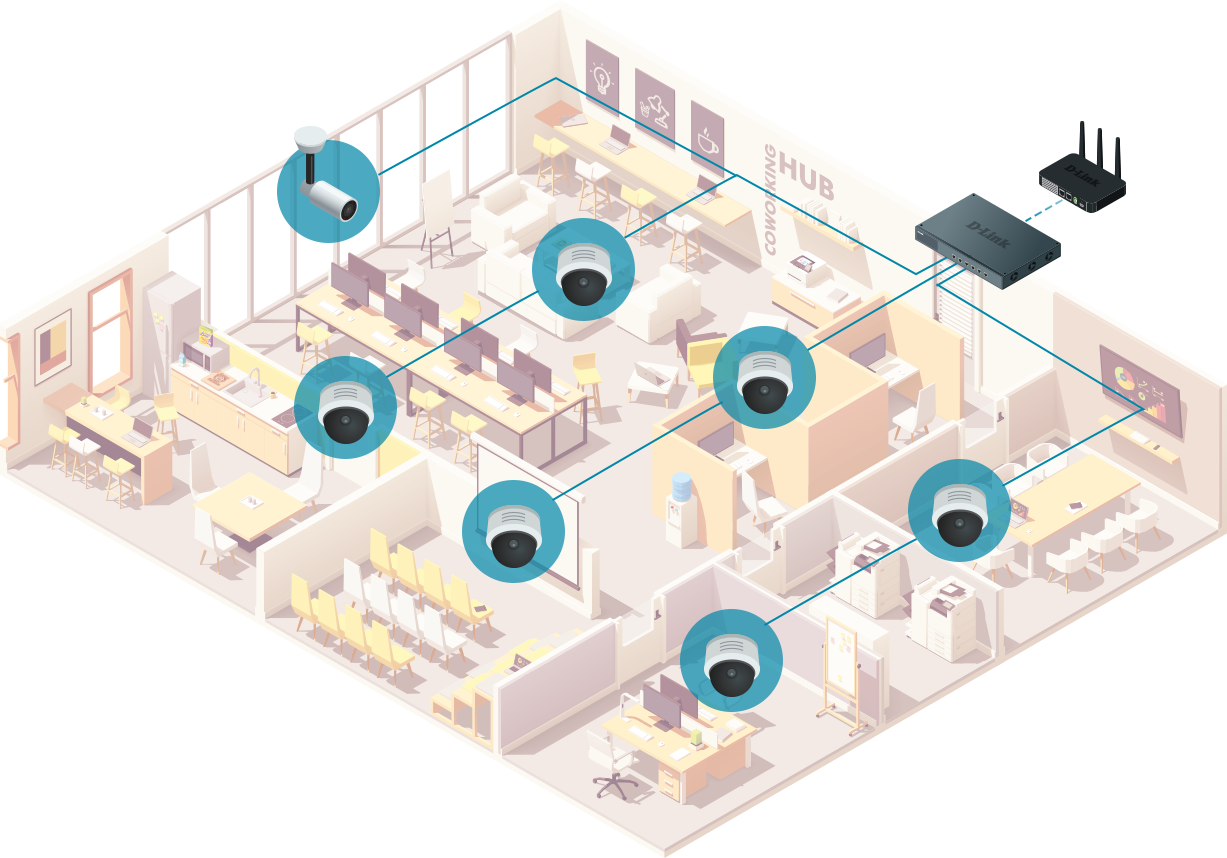

Compatible with a Wide Range of D-Link PoE-Enabled Cameras

Security is imperative for SMBs and large corporations alike. Run a video surveillance camera system in your business with our surveillance switches and connect multiple PoE enabled cameras wherever you wish.

Surveilance Switch Series

Product DSS-100E-6P
DSS-100E-6P
6 Port Unmanaged PoE Surveillance Switch
DSS-100E-9P
DSS-100E-9P
9 Port 10/100 PoE Unmanaged Surveillance Switch
DSS-100E-18P
DSS-100E-18P
18 Port 10/100BASE-TX PoE Unmanaged Surveillance Switch
DSS-100E-26P
DSS-100E-26P
26 Port Unmanaged PoE Surveillance Switch
Interface
  • 4 x 10/100Base-T PoE ports
  • 8 x 10/100Base-T PoE ports
  • 1 x 1000Base-T port
  • 16 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
  • 24 x 10/100BASE-T PoE ports
  • 1 x 1000BASE-T ports
  • 1 x 100/1000BASE-T/ SFP combo port
Performance
Switch Capacity1.2 Gbps3.8 Gbps7.2 Gbps8.8 Gbps
Max. Packet Forwarding Rate0.89 Mpps2.6784 Mpps5.36 Mpps6.55 Mpps
PoE
PoE Budget55 W 92 W 230 W 230 W
Technical Specification
Maximum Power Consumption Maximum: 64.20 W (PoE on),
1.57 W (PoE off)
Maximum: 113.4 watts (PoE on),
4.57watts (PoE off)
Maximum: 265 watts (PoE on),
16.89 watts (PoE off)
Maximum: 269.28 W (PoE on),
14.84 W (PoE off)
Power Feature100 - 240 VAC100 - 240 VAC100 - 240 VAC100 - 240 VAC
Surge/Lightning Protection6kV6kV6kV6kV
Dimension177 x 104 x 26 mm177 x 104 x 26 mm440 x 178 x 44 mm440 x 178 x 44 mm

10 / 100 Mbps PoE ports
8
1000BASE-T port
1
Dimensions
177 x 104 x 26 mm
Max. Packet Forwarding Rate
2.6784 Mpps
Maximum Power Consumption
113.4watts (PoE on)
4.57watts (PoE off)
PoE Power Budget
92W
Power Feature
DC : 51V/2A
Surge Protection
Up to 6 kV
Switch Capacity
3.6 Gbps
